EF Series 316 Stainless Steel FKM PTFE ETFE Drum Pump Tube, 16 in. to 48 in. Lengths

Finish ThompsonSKU: DEFS001

Grid List
16 in. tube length
Size:
Price:
Sale price$512.80

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.

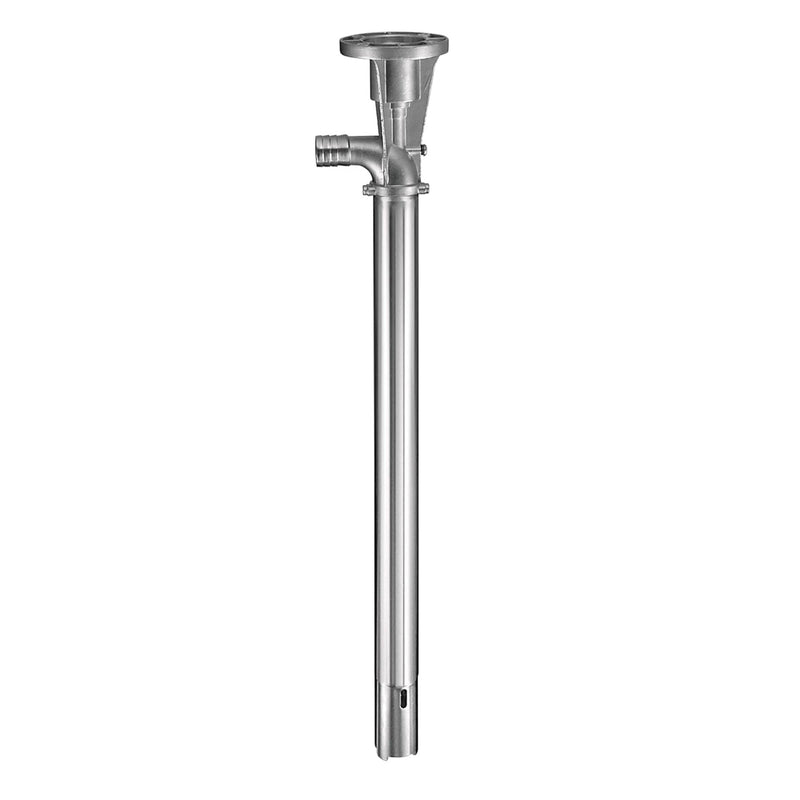

16 in. tube length
DEFS001
$512.80

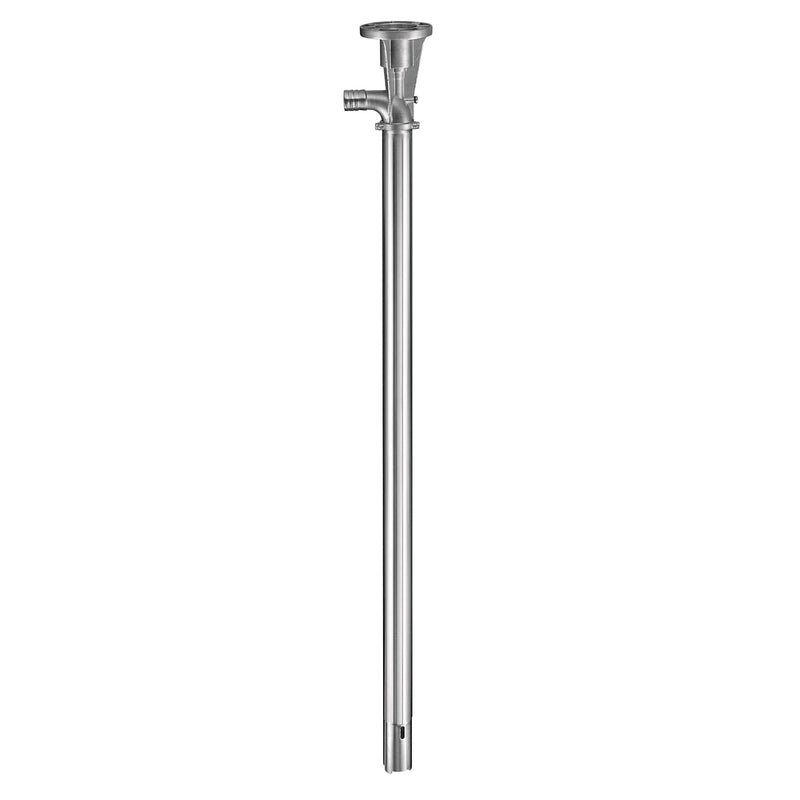

27 in. tube length
DEFS002
$561.60
40 in. tube length
DEFS003
$620.00

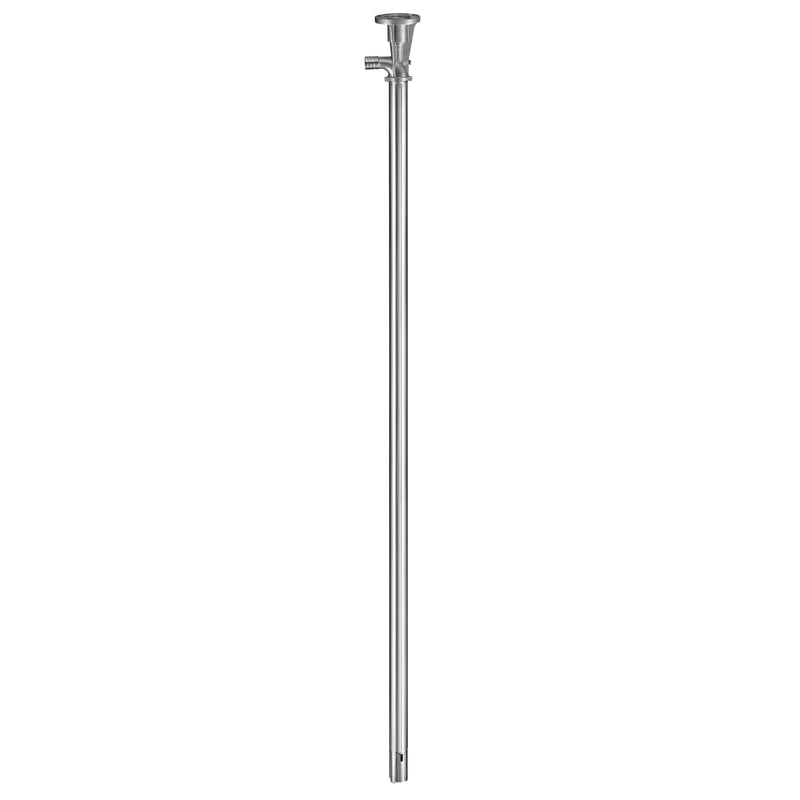

48 in. tube length
DEFS004
$672.80

Product has been added to your cart

Please input the Quantity!

Description

The Finish Thompson EF Series is a sealess, best value drum pump. This pump provides an economical and lightweight choice for light duty transfer. Ideal replacement for hand pumps.

Specifications:

  • 316 Stainless Steel

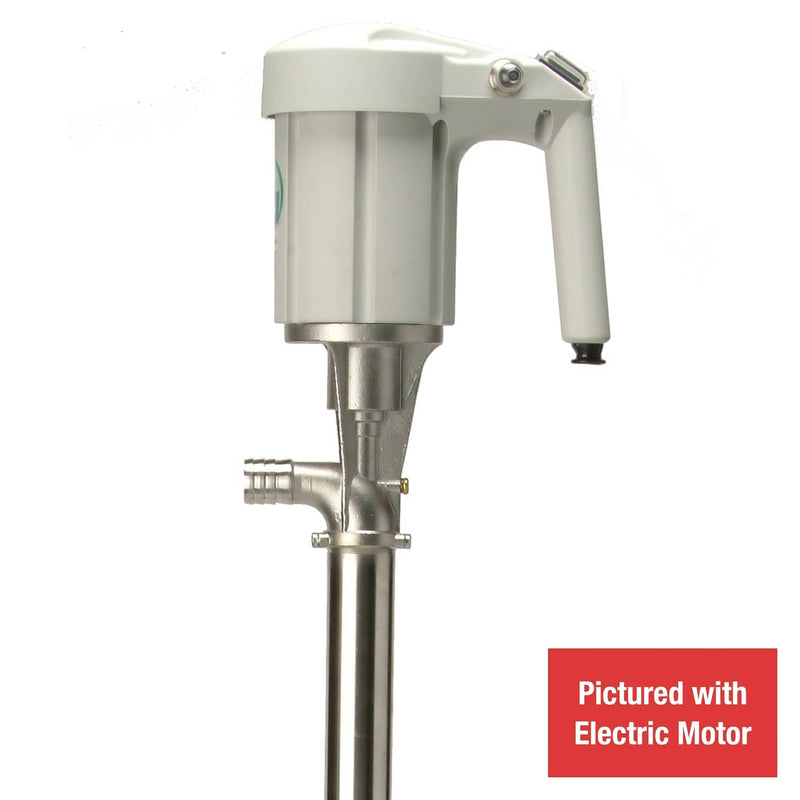

  • Interchangeable with motors (dual speed adjustable motors available)

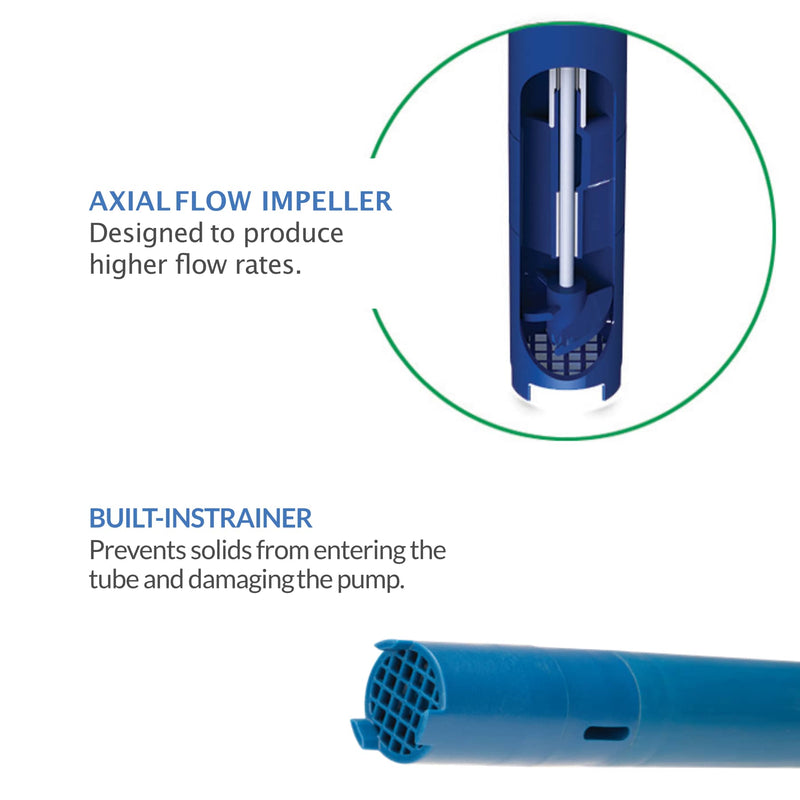

  • Integral strainer
  • Maximum flow: up to 17 gpm (64.4 lpm)
  • Maximum head: up to 20 ft (6.1 m)
  • Maximum temperature: 212 degrees F (100 degrees C)
  • Maximum* specific gravity: 1.6
  • Maximum* viscosity: 300 cP with electric/air motor; 100 cP with 12V motor
  • 1-1/4 in (3.2 cm) tube diameter
  • 3/4 in (1.9 cm) discharge
  • Pat. US D658,273 S; Pat. US D657,849 S; Pat. ZL 201130042121.X; Pat. ZL 201130042107.X; OHIM Pat. 001839002-0002; OHIM Pat.001839002-0001

Applications:

  • Light acids and bases
  • Solvents
  • Sodium hypochlorite
  • Cleaners
  • Coolants DEF/AdBlue (diesel exhaust fluid)

Compatible Motors:

  • ODP: S1, S2, S3, S6

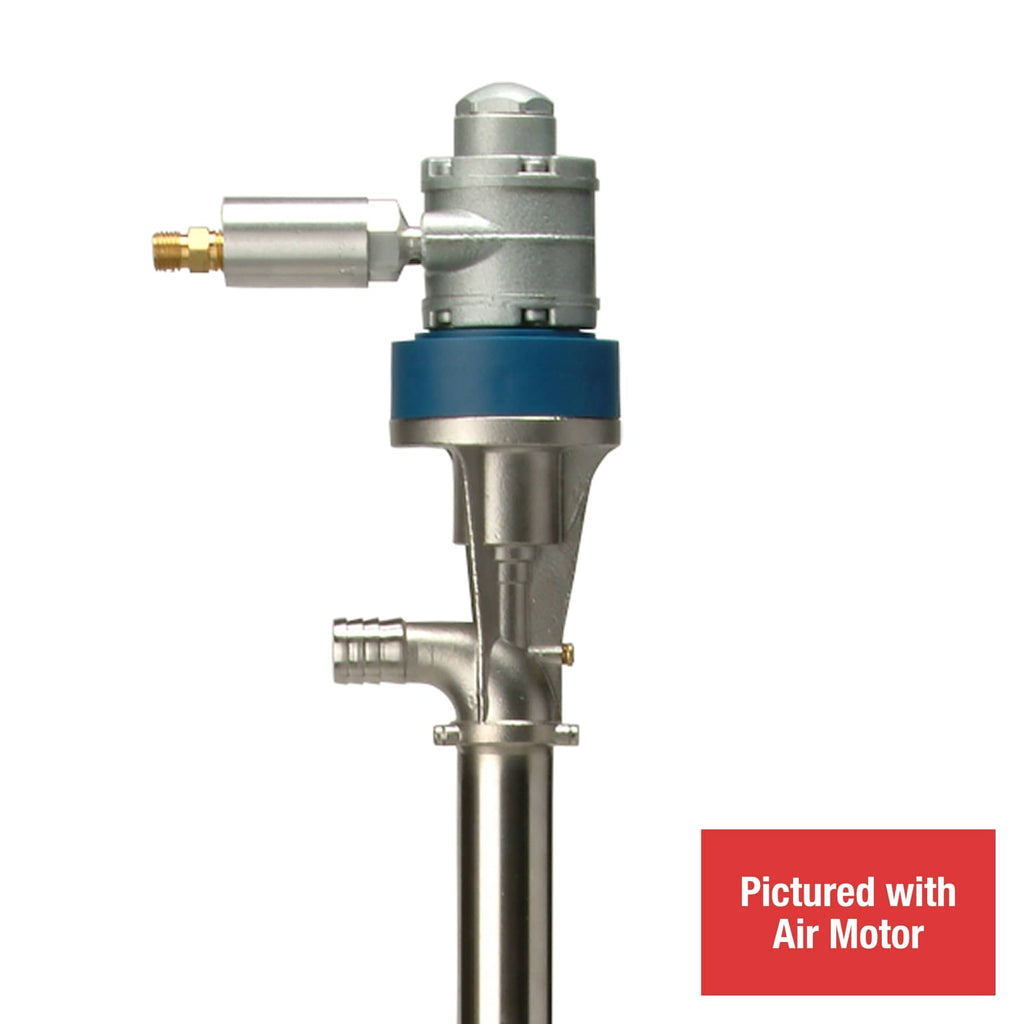

  • Air: S4

* Maximum specific gravity is dependent on fluid viscosity; maximum fluid viscosity is dependent upon specific gravity.
