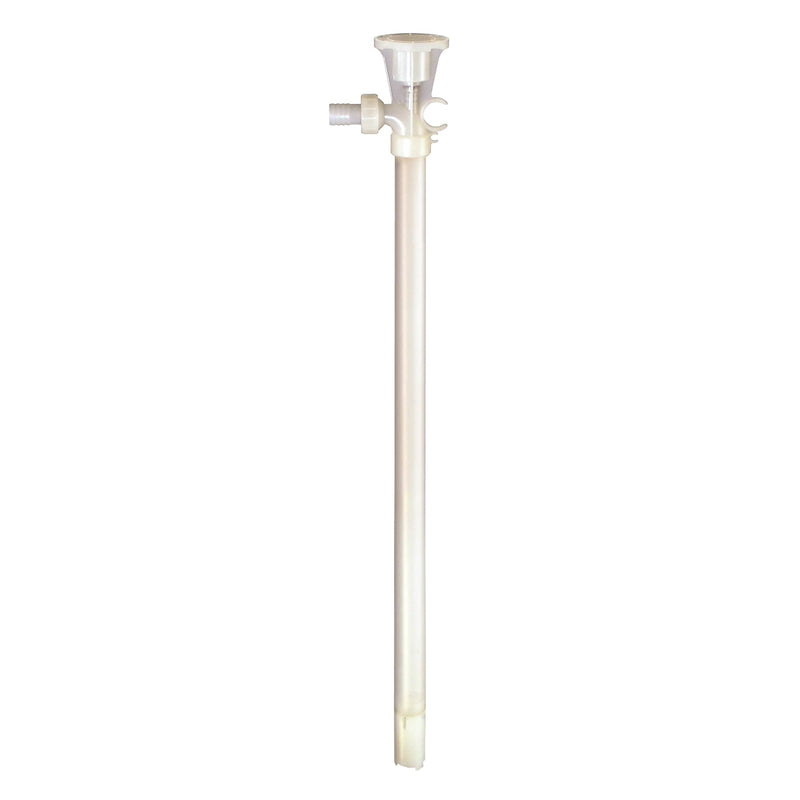

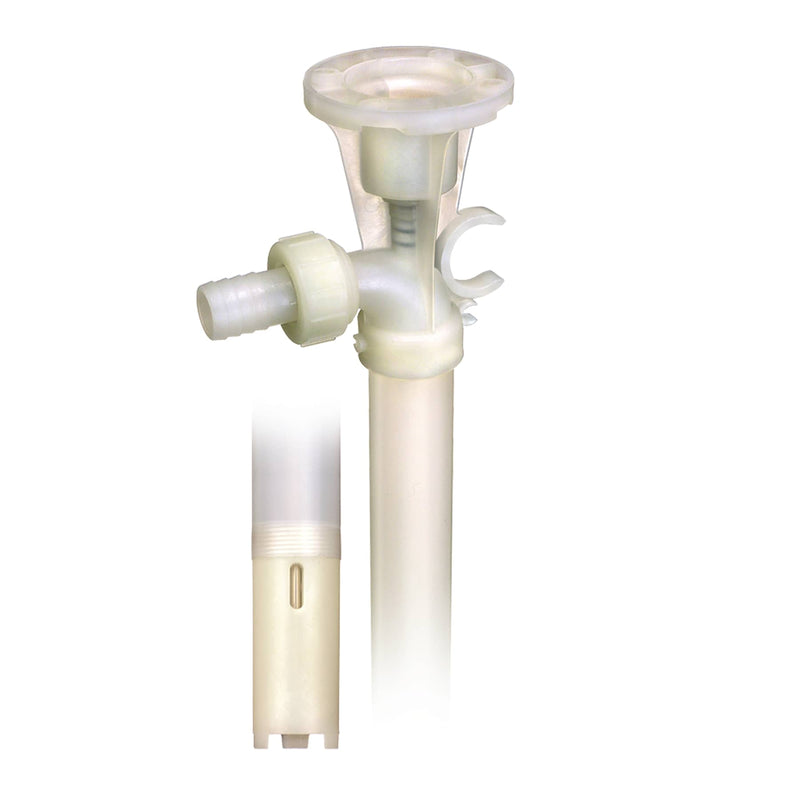

EF Series Pure Polypropylene/PVDF Alloy 625 FKM PTFE ETFE Drum Pump Tube, 16 in. to 48 in. Lengths

EF Series Pure Polypropylene/PVDF Alloy 625 FKM PTFE ETFE Drum Pump Tube, 16 in. to 48 in. Lengths

Finish ThompsonSKU: DEFV001
Grid List

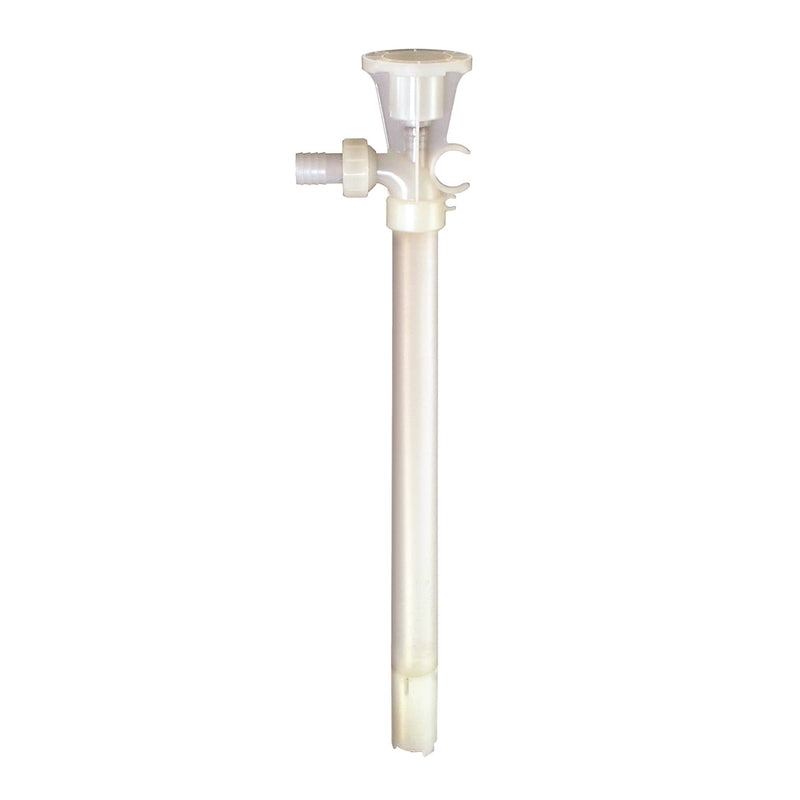

16 in. tube length
Size:
Price:
$260.80

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
16 in. tube length
DEFV001
$260.80
27 in. tube length
DEFV002
$280.00
40 in. tube length
DEFV003
$320.80
48 in. tube length
DEFV004
$365.60

Product has been added to your cart

Please input the Quantity!

Description

The Finish Thompson EF Series is a sealess, best value drum pump. This pump provides an economical and lightweight choice for light duty transfer. Ideal replacement for hand pumps.

Specifications:

  • Pure Polypropylene/PVDF
  • Interchangeable with motors (dual speed adjustable motors available)

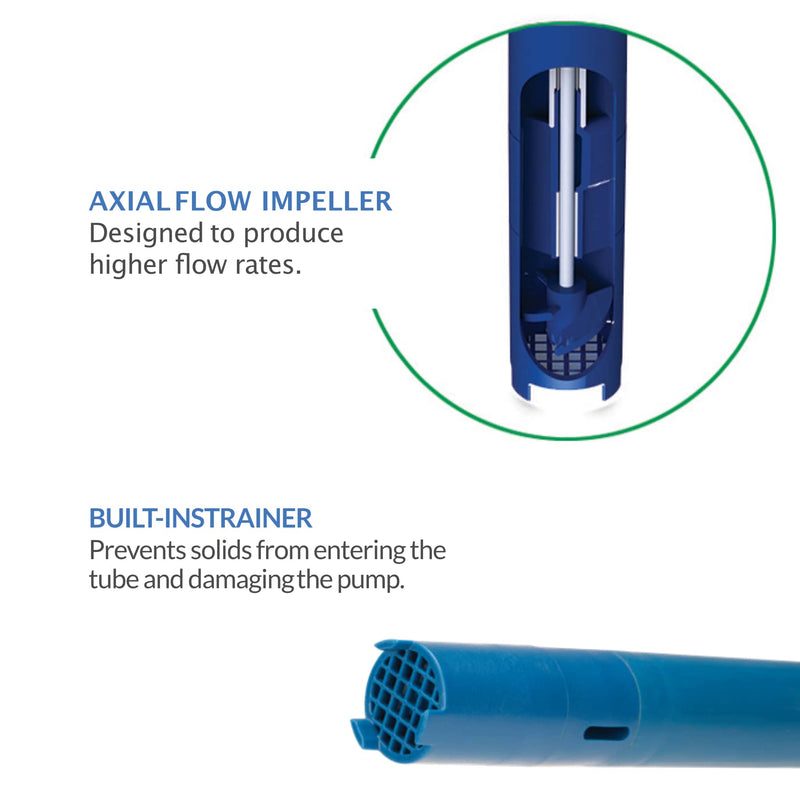

  • Integral strainer
  • Built-in hose, cord clips
  • Maximum flow: up to 17 gpm (64.4 lpm)
  • Maximum head: up to 20 ft (6.1 m)
  • Maximum temperature: 160 degrees F (71 degrees C)
  • Maximum* specific gravity: 1.6
  • Maximum* viscosity: 300 cP with electric/air motor; 100 cP with 12V motor
  • 1-5/16 in (3.3 cm) tube diameter
  • 3/4 in (1.9 cm) discharge
  • Pat. US D658,273 S; Pat. US D657,849 S; Pat. ZL 201130042121.X; Pat. ZL 201130042107.X; OHIM Pat. 001839002-0002; OHIM Pat.001839002-0001

Applications:

  • Light acids and bases
  • Solvents
  • Sodium hypochlorite
  • Cleaners
  • Coolants DEF/AdBlue (diesel exhaust fluid)

Compatible Motors:

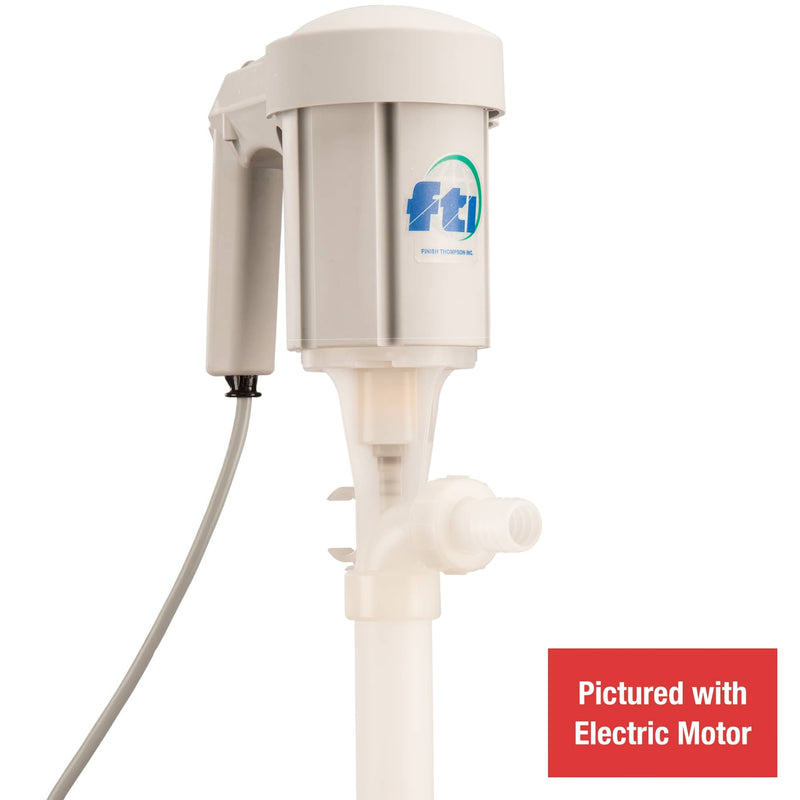

  • ODP: S1, S2, S3, S6

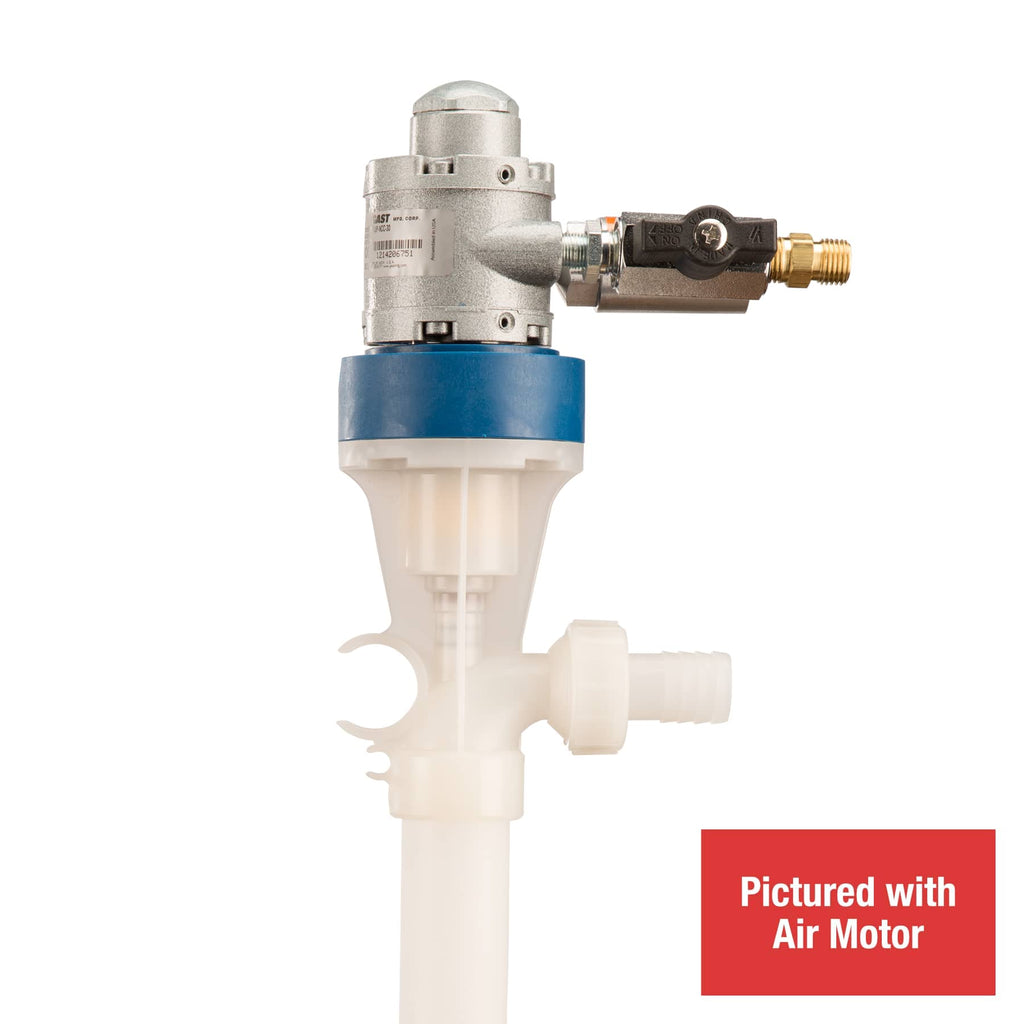

  • Air: S4

* Maximum specific gravity is dependent on fluid viscosity; maximum fluid viscosity is dependent upon specific gravity.
