Description

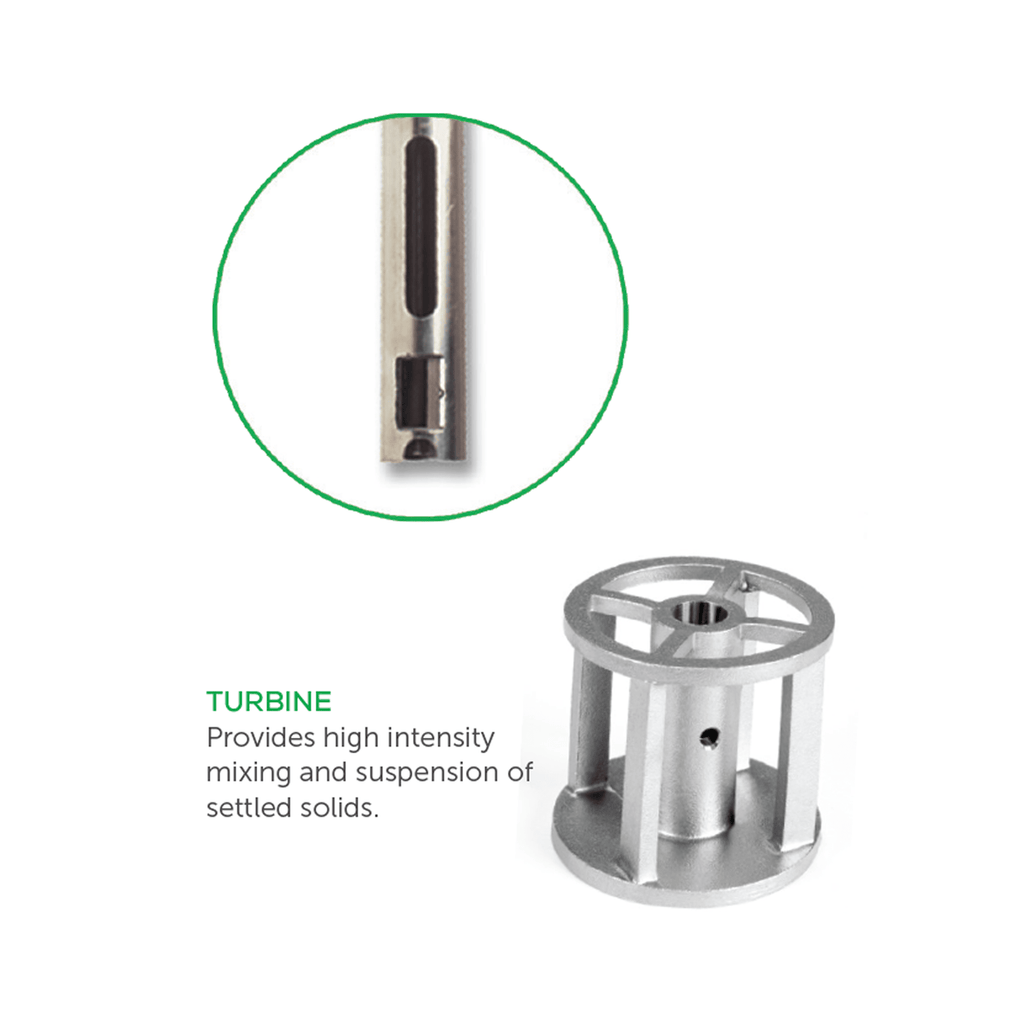

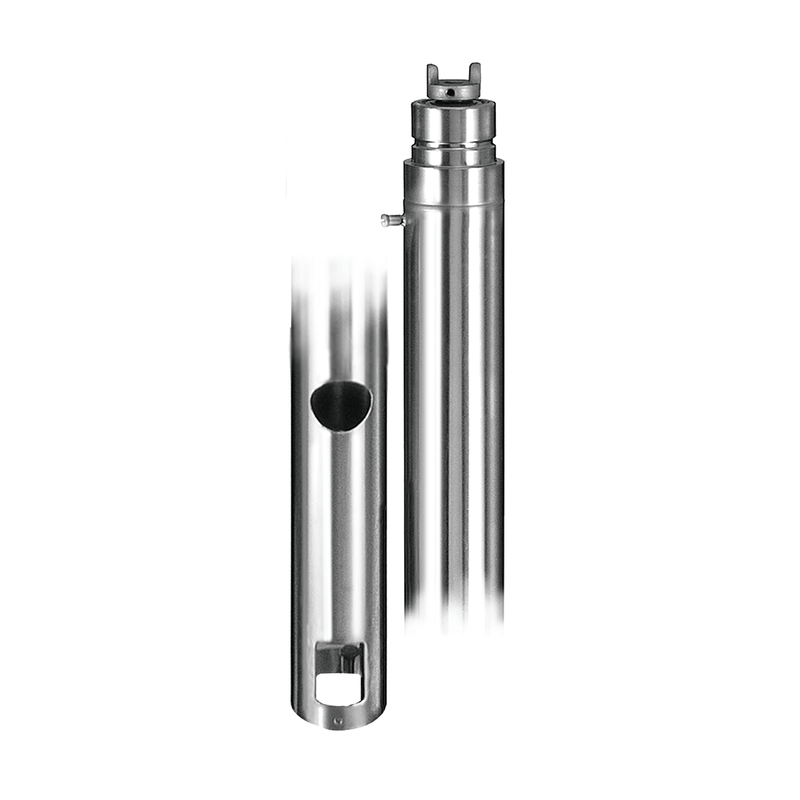

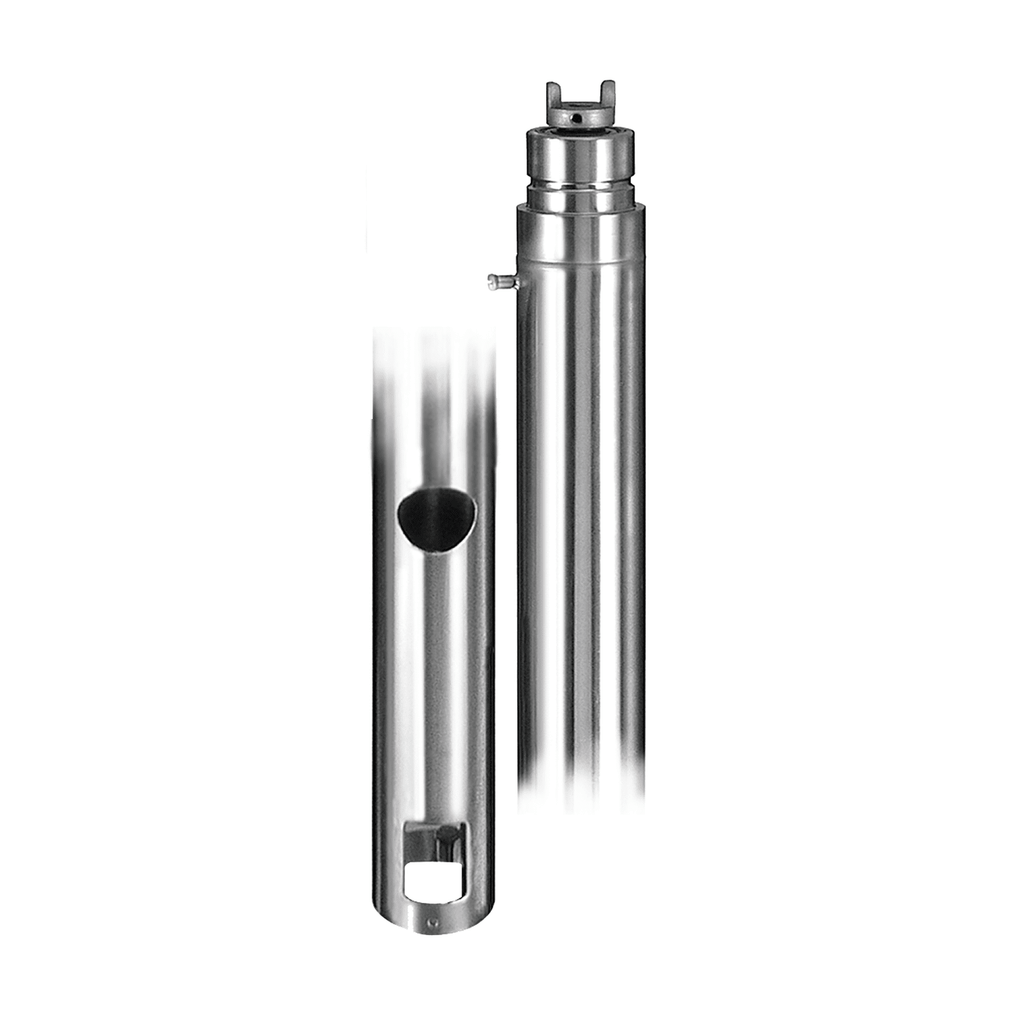

The Finish Thompson TM Series is a sealed, low/medium viscosity drum mixer. Sealed mixer with 4-blade turbine mixing/blending capability. Ideal for rapid suspension of settled solids.
Specifications:
- Maximum circulation: 14 gpm (53 lpm)
- Maximum temperature: 200 degrees F (93 degrees C)
- Maximum specific gravity: 1.8
- Maximum viscosity: 1000 cP
- 2 in (5.1 cm) tube diameter
- 1 in (2.5 cm) discharge
Applications:
- Dyes
- Inks
- Paints
- Stains
- Mild corrosives
- Solvents
- Flammables

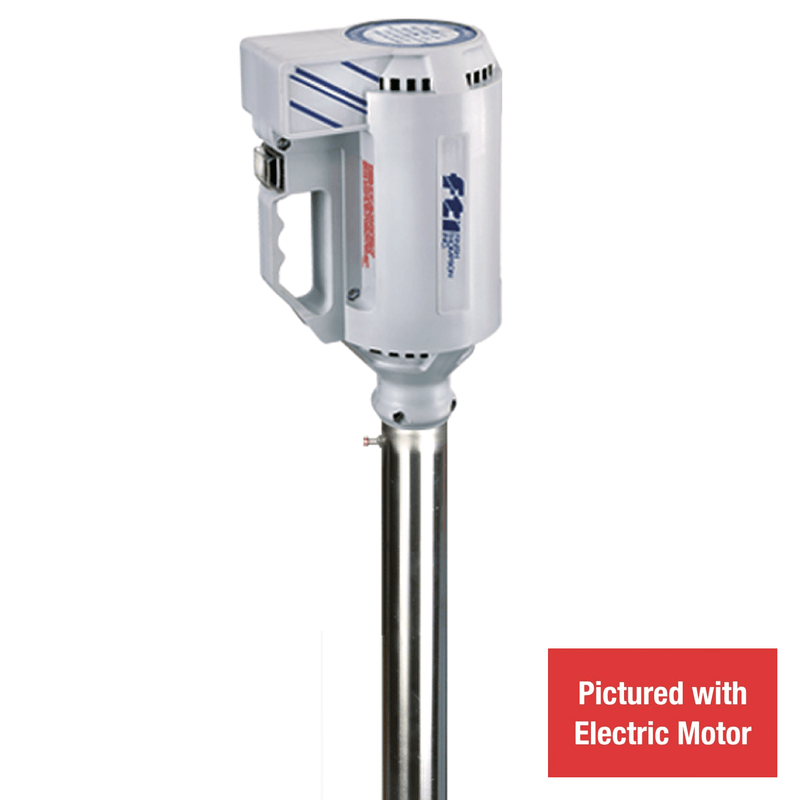

Compatible Motors:
- TEFC: M7TV, M8TV
- EXP: M7XV, M8XV

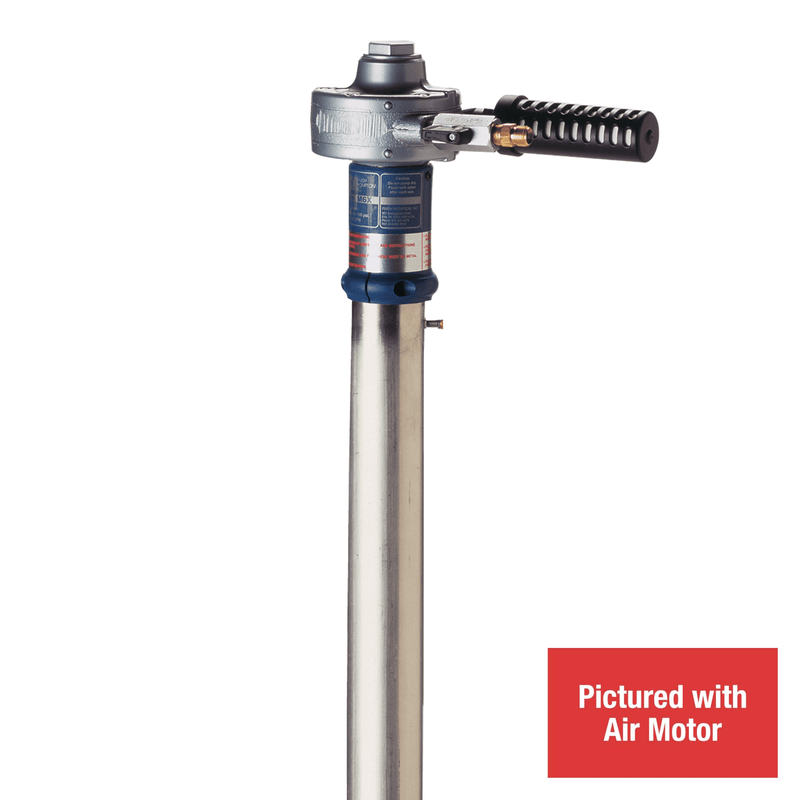

- Air: M6, M6X
When pumping flammables or combustibles, use explosion proof electric or air drive motors on stainless steel tubes with static protection kit.
