Description

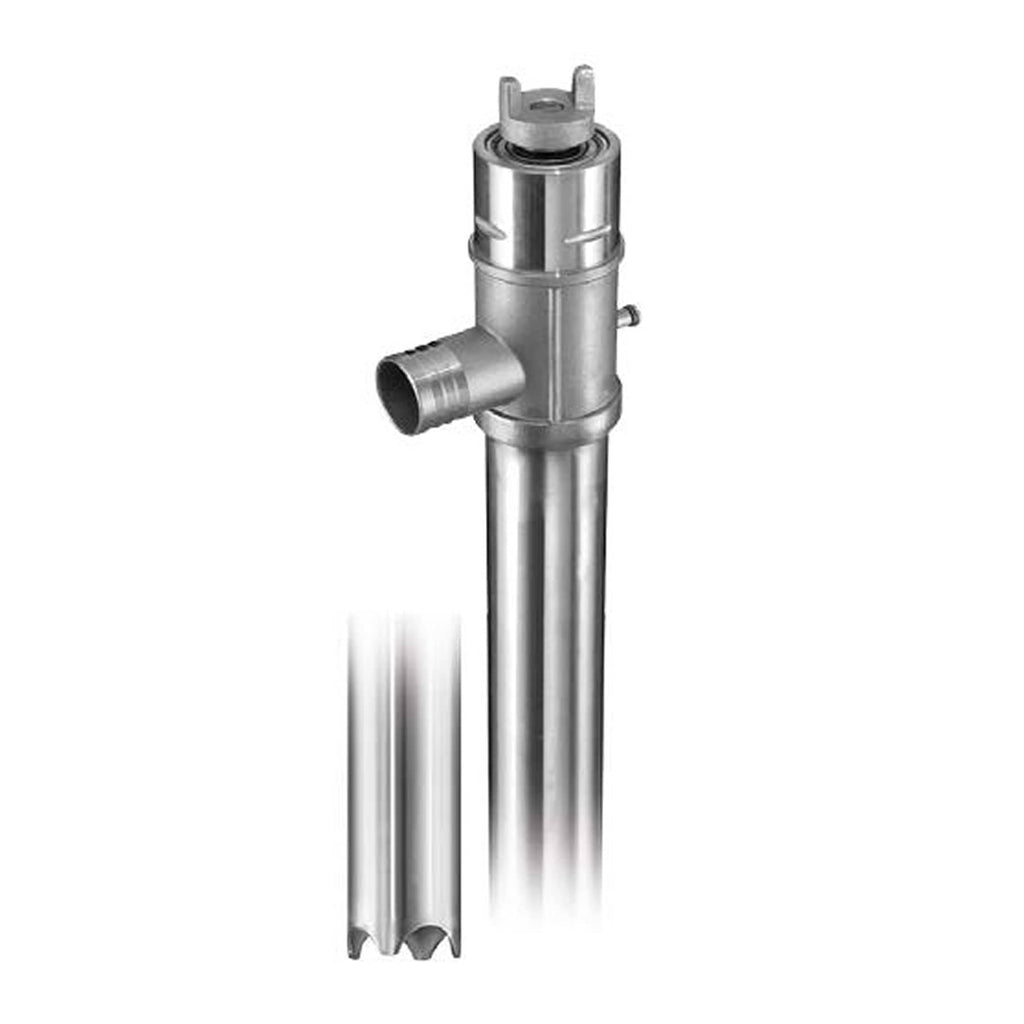

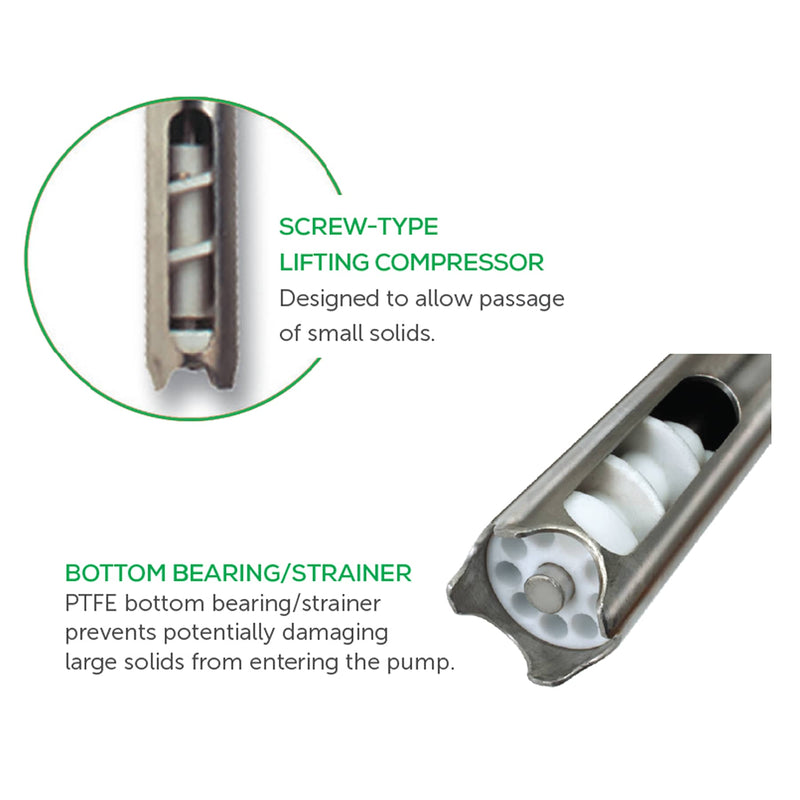

The Finish Thompson TT Series is a is a sealed, medium viscosity/flow drum pump. Sealed pump with PTFE screw-type lifting compressors. Ideal for liquids containing small particulate or solvents.
Specifications:
- Maximum flow*: up to 16 gpm (61 lpm)
- Maximum head*: up to 30 ft (9 m)
- Maximum temperature: 150 degrees F (66 degrees C)
- Maximum specific gravity: 1.8
- Maximum viscosity: up to 500 cP with electric motor up to 2000 cP with air motor
- 1-1/2 in (3.8 cm) tube diameter
- 1 in (2.5 cm) discharge
Applications:
- Inks
- Paints
- Solvents
- Sanitary
- Sodium
- Hypochlorite

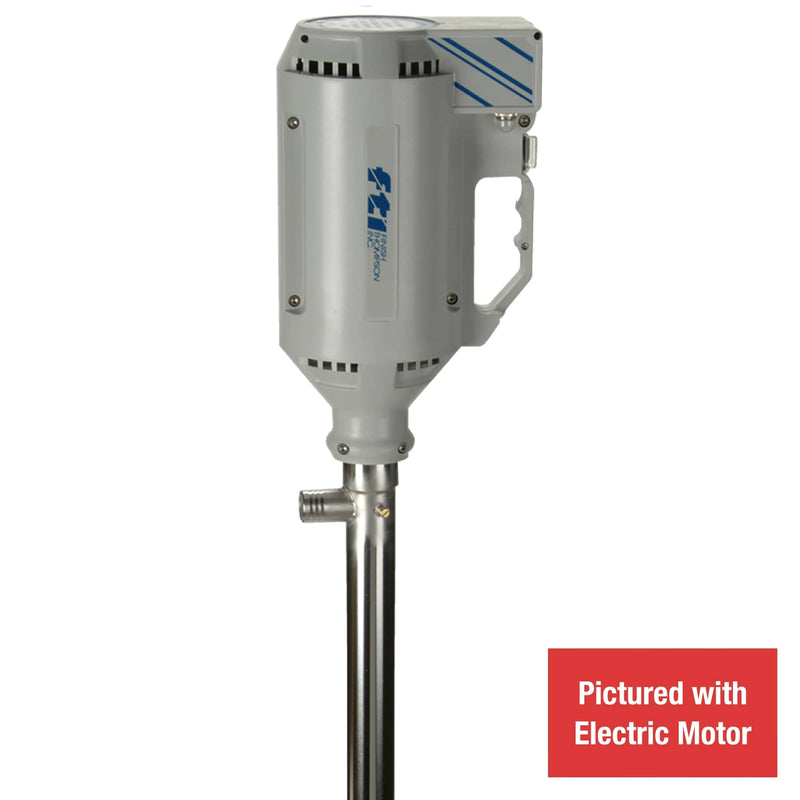

Compatible Motors:
- TEFC: M7TV, M8TV
- EXP: M7XV, M8XV
- Air: M6, M6X
* All testing performed with water at 68oF (20oC). Actual performance can vary by +/- 10 percent. Actual performance will decrease with increased fluid viscosity and specific gravity.
When pumping flammables or combustibles, use explosion proof electric or air drive motors on stainless steel tubes with static protection kit.
