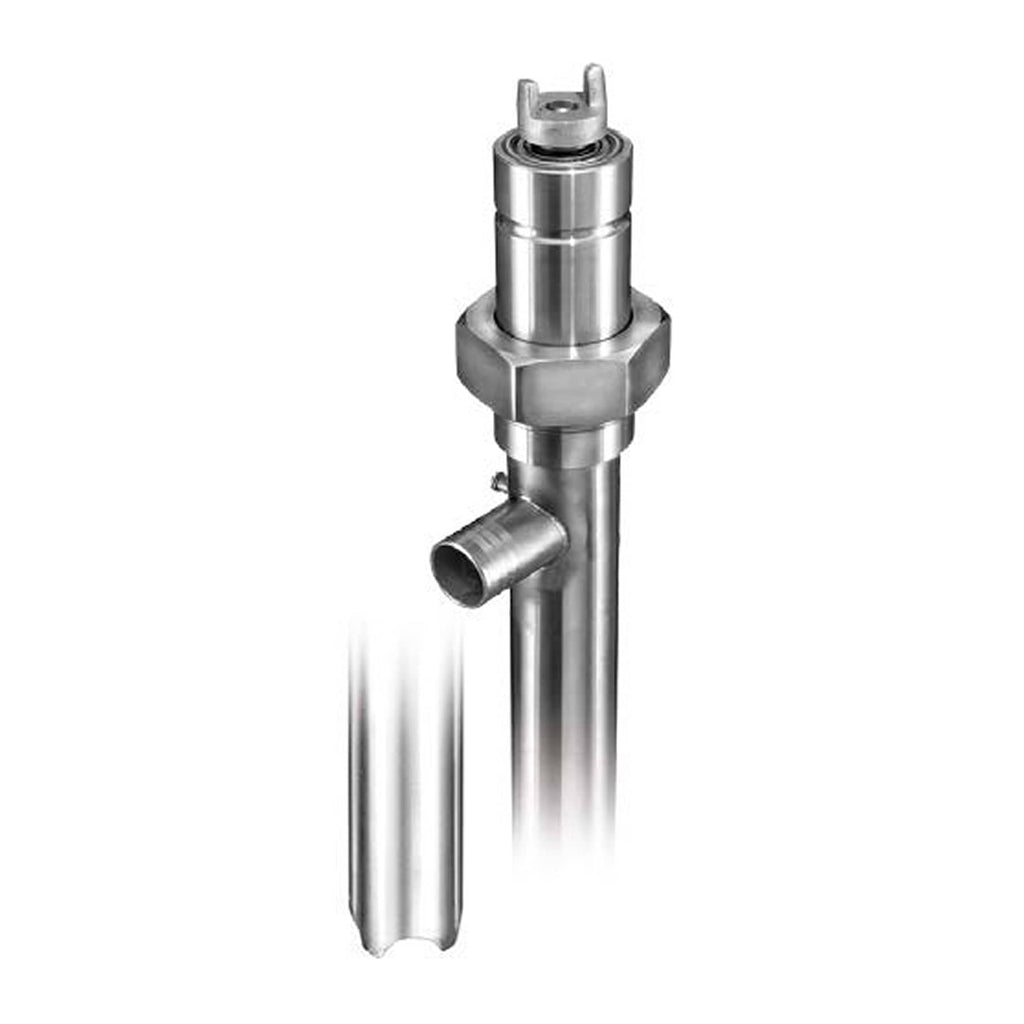

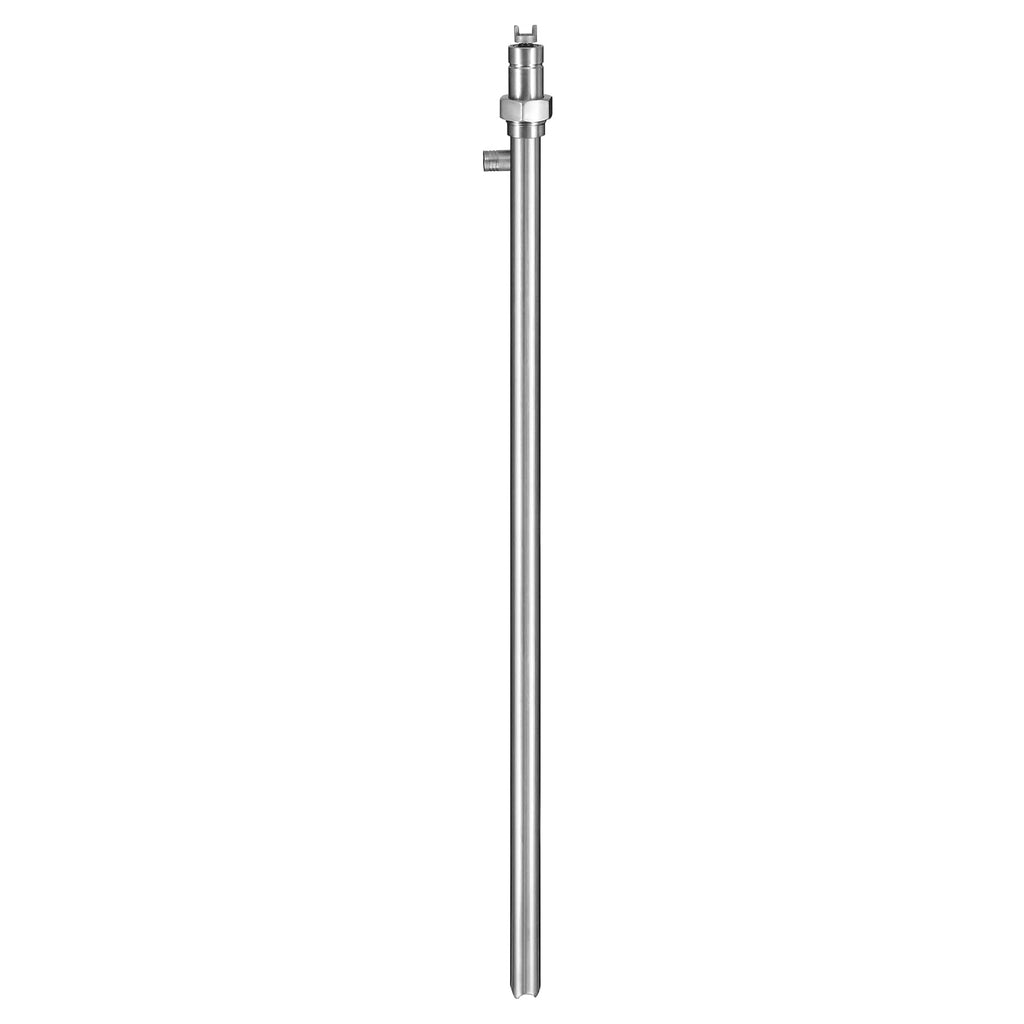

TT Series 316 Stainless Steel PTFE FDA-Compliant Drum Pump Tube, 40 in. Length

Finish ThompsonSKU: DTTU007

Price:
Sale price$1,320.80

Product has been added to your cart

Please input the Quantity!

Description

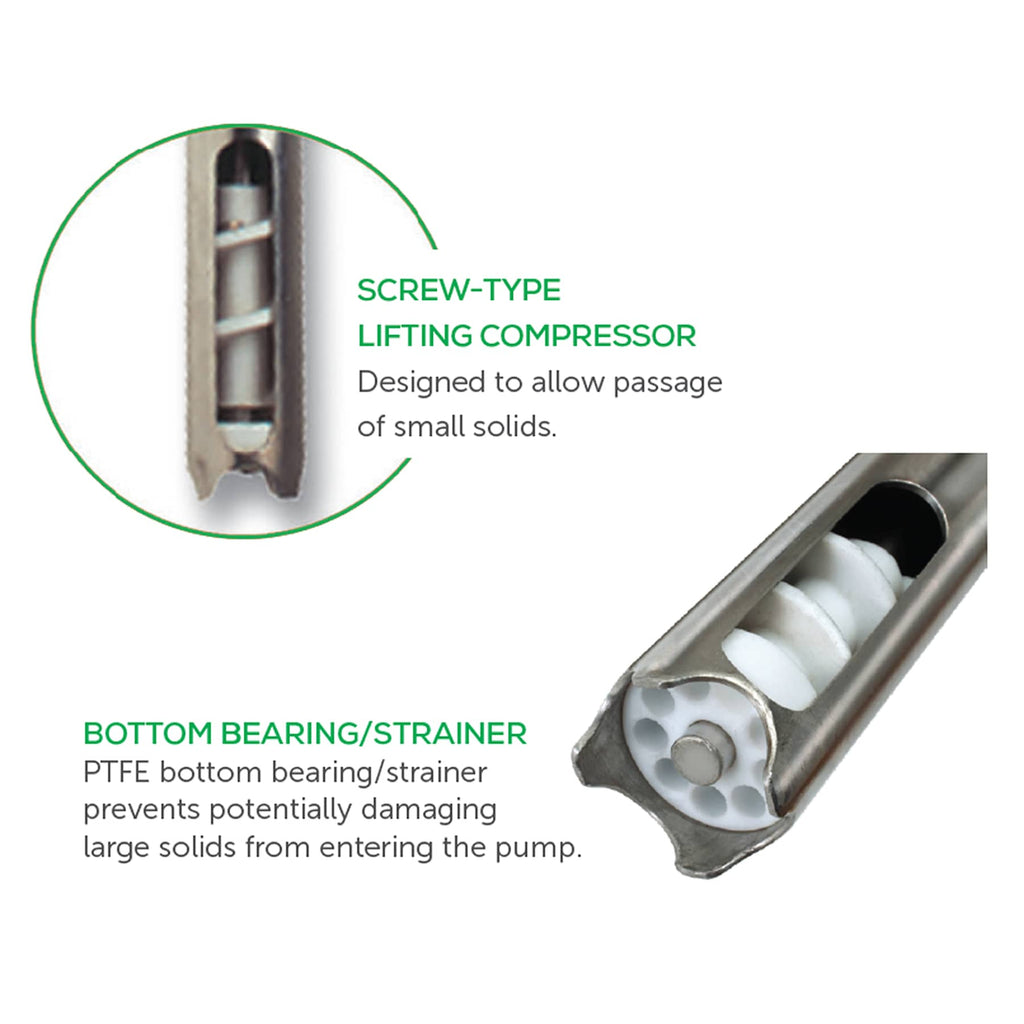

The Finish Thompson TT Series is a is a sealed, medium viscosity/flow drum pump. Sealed pump with PTFE screw-type lifting compressors. Ideal for liquids containing small particulate or solvents. Model STTS is constructed of FDA-compliant materials.

Specifications:

  • Maximum flow*: up to 16 gpm (61 lpm)
  • Maximum head*: up to 30 ft (9 m)
  • Maximum temperature: 150 degrees F (66 degrees C)
  • Maximum specific gravity: 1.8
  • Maximum viscosity: up to 500 cP with electric motor up to 2,000 cP with air motor
  • 1-1/2 in (3.8 cm) tube diameter
  • 1 in (2.5 cm) discharge

Applications:

  • Food Products
  • Inks
  • Paints
  • Solvents
  • Sanitary
  • Sodium
  • Hypochlorite

Compatible Motors:

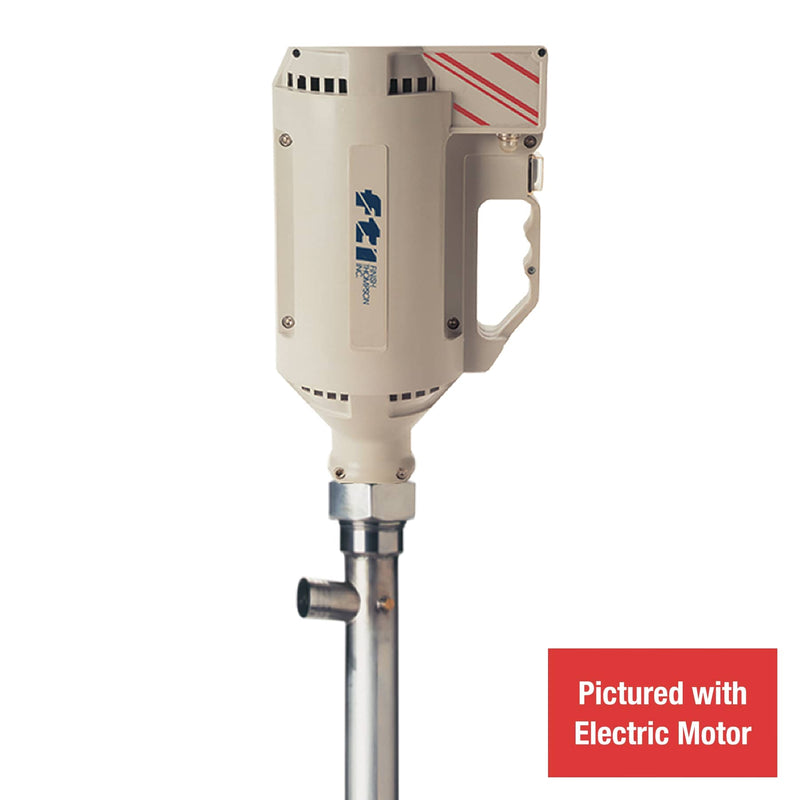

  • TEFC: M7TV, M8TV
  • EXP: M7XV, M8XV

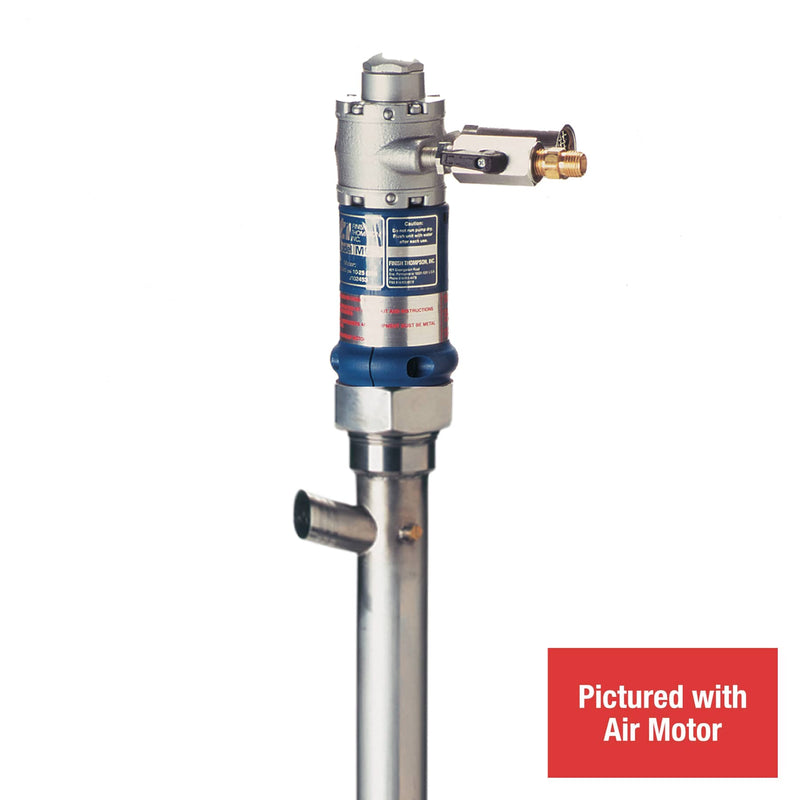

  • Air: M6, M6X

When pumping flammables or combustibles, use explosion proof electric or air drive motors on stainless steel tubes with static protection kit.

* All testing performed with water at 68oF (20oC). Actual performance can vary by +/- 10 percent. Actual performance will decrease with increased fluid viscosity and specific gravity.
