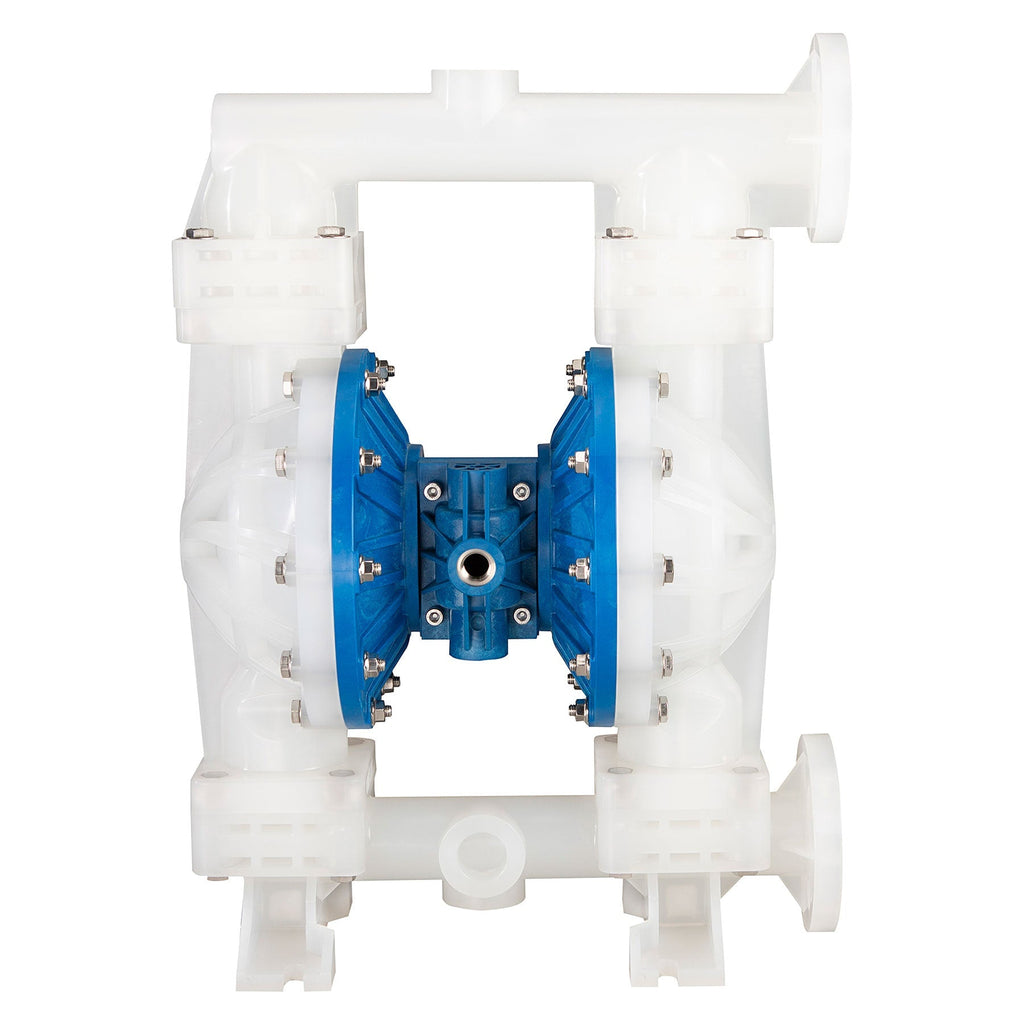

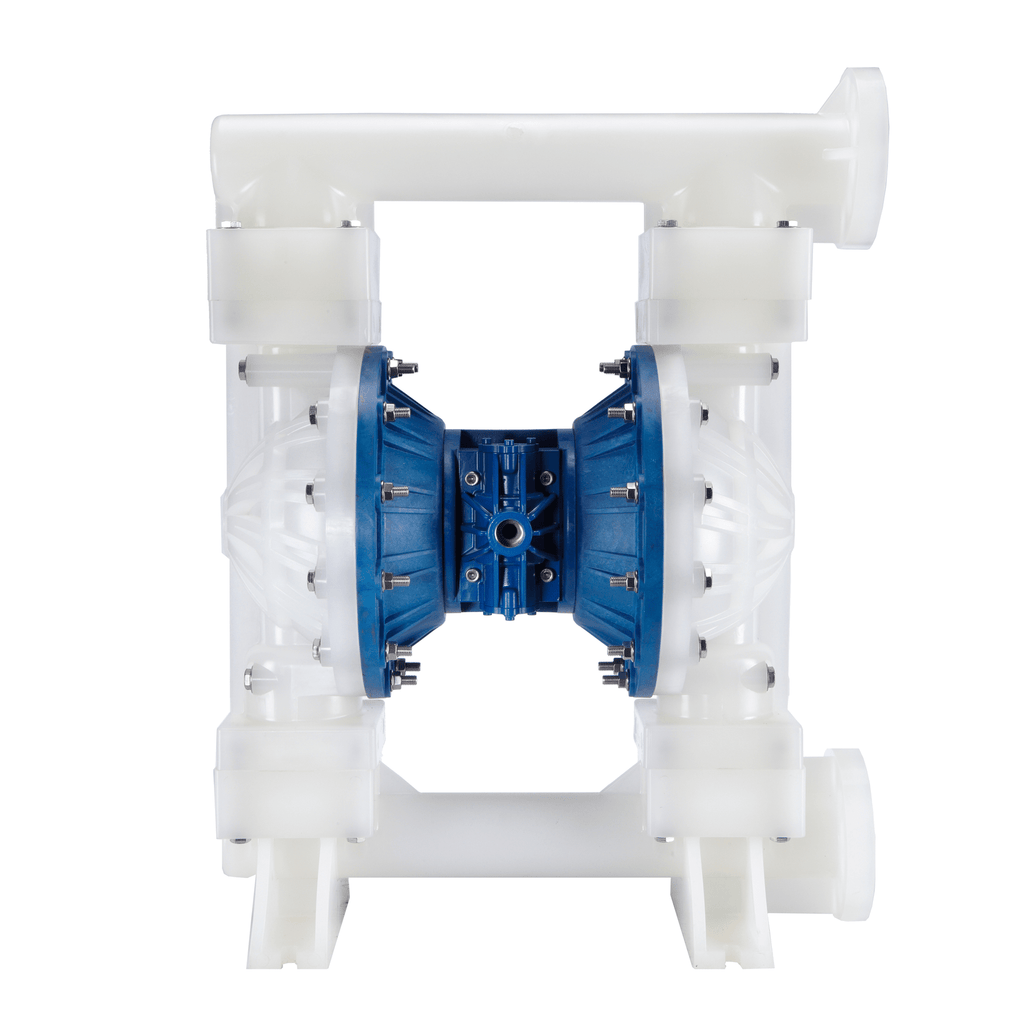

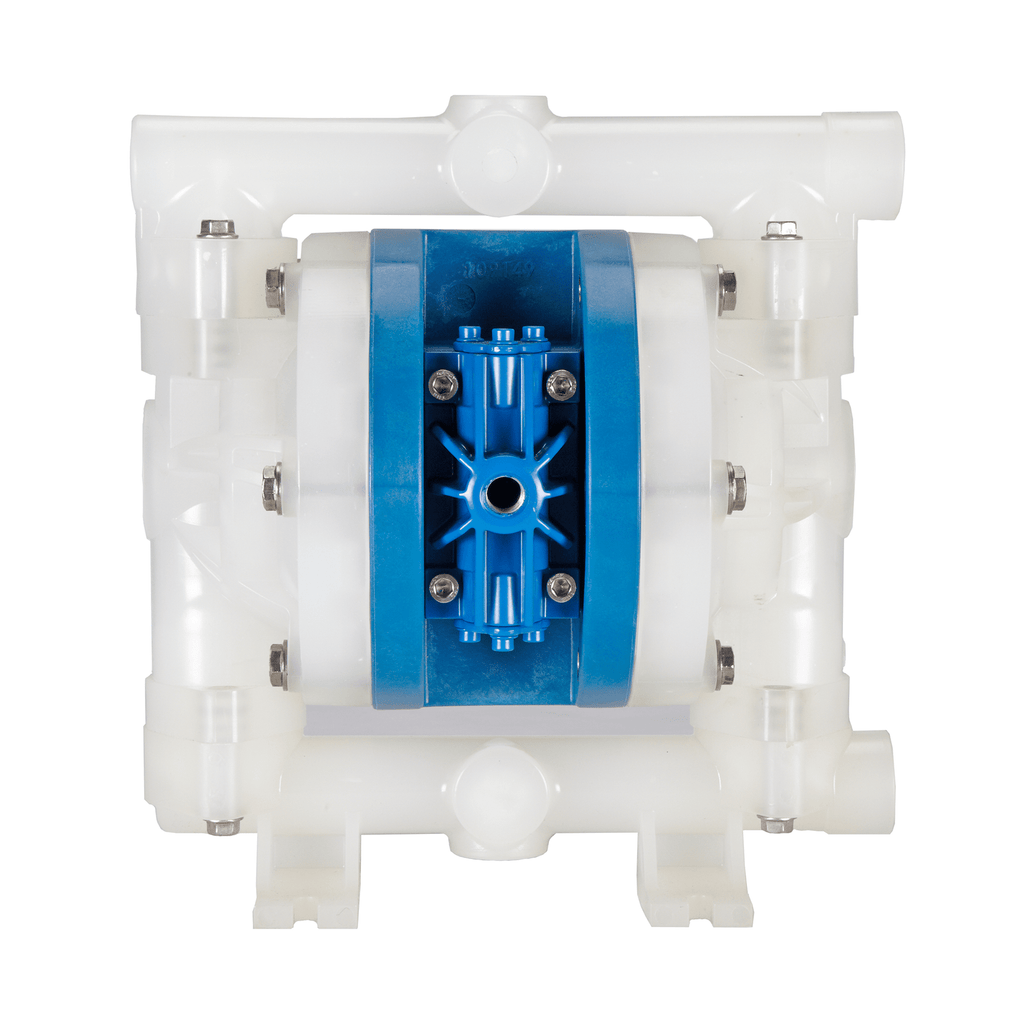

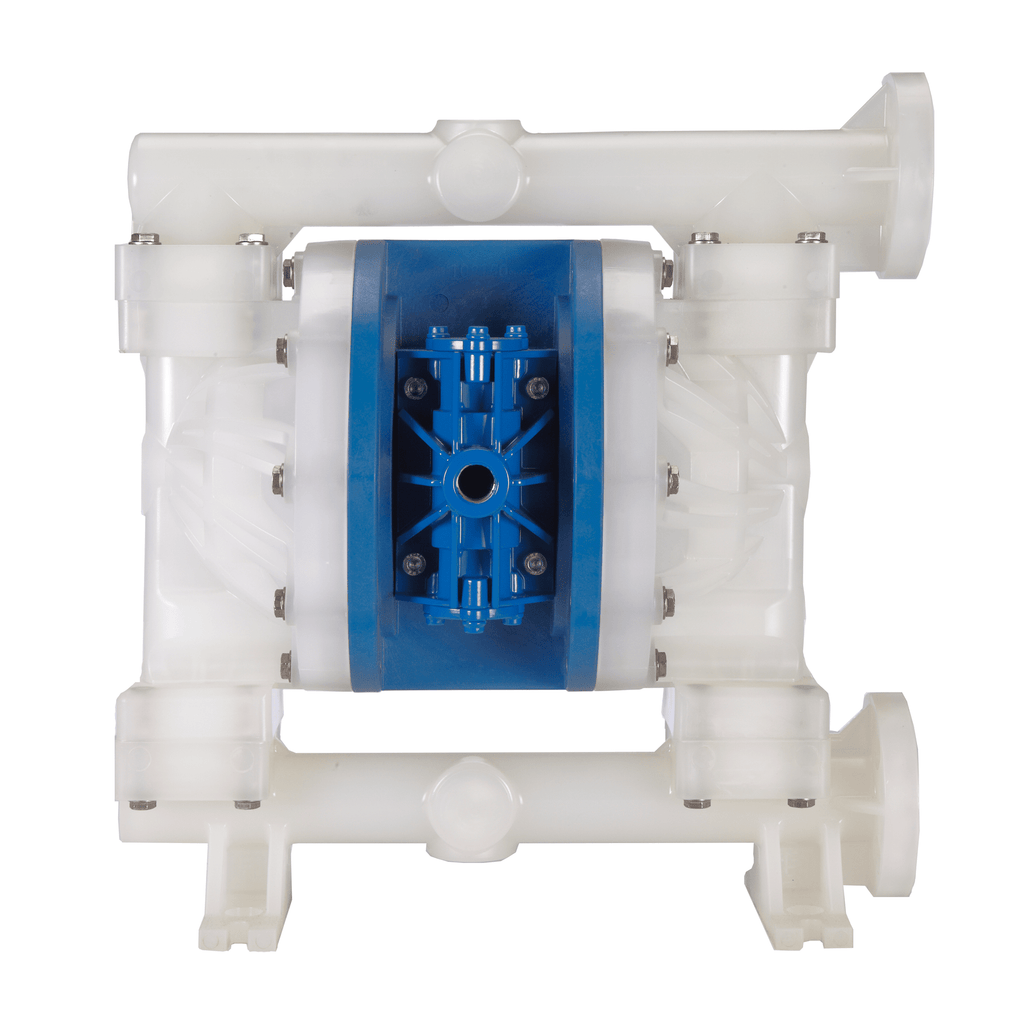

FTI Air FDA Compliant AODD Polypropylene Non-Metallic Diaphragm Pump

FTI AirSKU: FT05P-PP-55PC-N1
No reviews

View
Polypropylene (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Polypropylene valve seat, FKM O-ring, FNPT connection
Price:
Sale price$516.00

Shipping calculated at checkout

Description
SKU
Price
Qty.
Polypropylene (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Polypropylene valve seat, FKM O-ring, FNPT connection
FT05P-PP-55PC-N1
$516.00
Polypropylene (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Polypropylene valve seat, FKM O-ring, ANSI/DIN/ISO Flange connection
FT10P-PP-55PC-F1
$859.00
Polypropylene (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Polypropylene valve seat, FKM O-ring, FNPT connection
FT15ZP-PP-55PC-N1
$2,044.00
Polypropylene (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Polypropylene valve seat, FKM O-ring, ANSI/DIN/ISO Flange connection
FT20P-PP-55PC-F1
$2,083.00

Description

FTI Air® FDA-compliant Metallic & Non-Metallic AODD pumps are specifically constructed of materials safe for food, beverage, pharmaceutical and cosmetic processes where 3A, USDA, or EHEDG standards are not required.

The simple, durable design features a non-stalling air valve, lube free operation, On/Off reliability, ease of operation & maintenance, and delicate/shear-sensitive product handling.

FTI Air® FDA-compliant AODD pumps adhere to the highest quality and industry standards:

  • FDA CFR21.177
  • EC Directive 1935/2004/EC
  • ATEX (metallic only)
  • CE

Construction:

  • Wetted Materials: Polypropylene
  • FDA Diaphragm Materials: Santoprene™
  • FDA Ball Materials: Santoprene™
  • Seat Materials: Polypropylene
  • O-ring Materials: FKM
 Wetted Non-wetted Diaphragm Valve/Ball
1/2 in. Polypropylene Polypropylene
Santoprene™ Santoprene™
1 in. Polypropylene Polypropylene Santoprene™ Santoprene™
1 1/2 in. Polypropylene Polypropylene Santoprene™ Santoprene™
2 in. Polypropylene Polypropylene Santoprene™ Santoprene™
Valve Seat O-Ring Connection Part No.
1/2 in. Polypropylene FKM FNPT FT05P-PP-55PC-N1
1 in. Polypropylene FKM ANSI/DIN/ISO Flange FT10P-PP-55PC-F1
1 1/2 in. Polypropylene FKM
FNPT FT15ZP-PP-55PC-N1
2 in. Polypropylene FKM
ANSI/DIN/ISO Flange FT20P-PP-55PC-F1


* Santoprene™ is a registered tradename of Exxon Mobil Corporation
