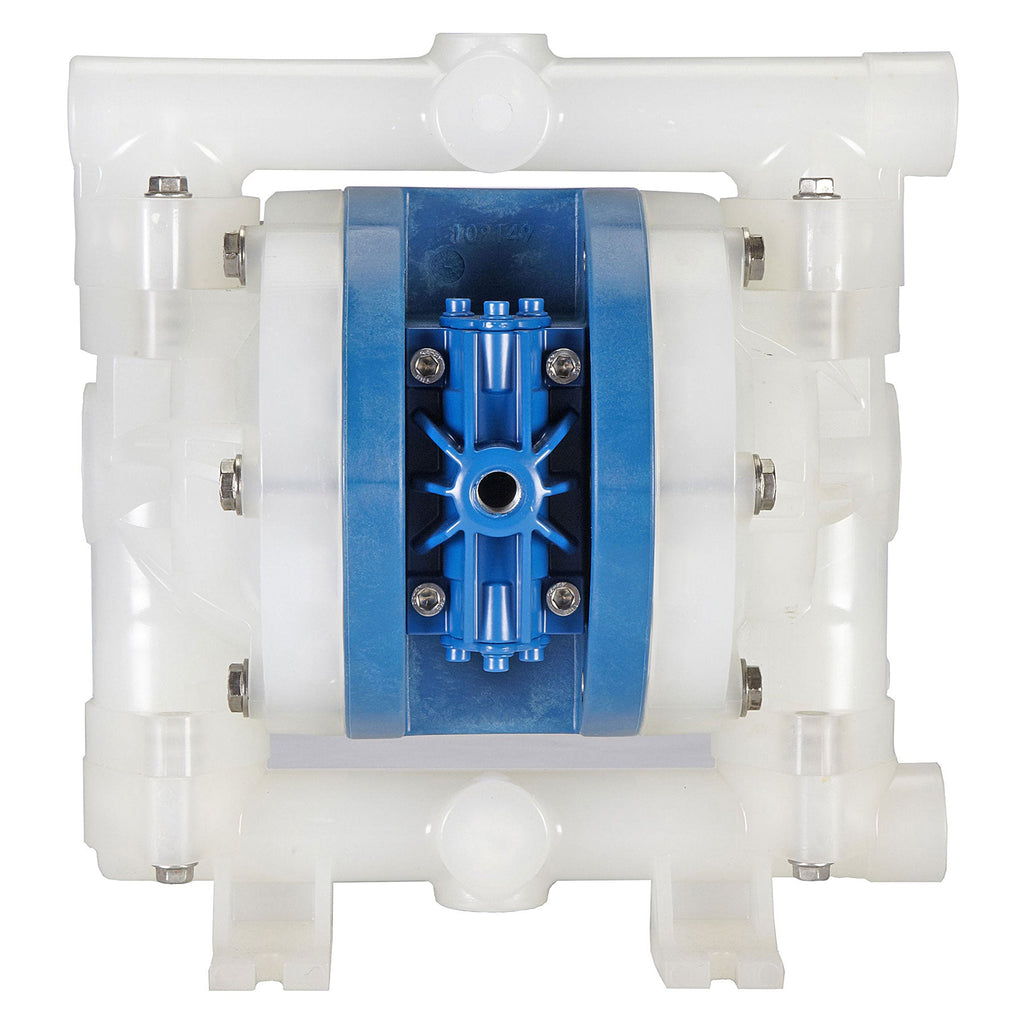

FTI Air Model FT05 Polypropylene 1/2 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT05P-PP-RRPR-N1
No reviews

View
PP (wetted & non-wetted), Santoprene™ diaphragm/valve/ball/O-ring, PP valve seat, FNPT connection
Price:
Sale price$449.00

Shipping calculated at checkout

Description
SKU
Price
Qty.
PP (wetted & non-wetted), Santoprene™ diaphragm/valve/ball/O-ring, PP valve seat, FNPT connection
FT05P-PP-RRPR-N1
$449.00
PP (wetted & non-wetted), PTFE/Santoprene™ diaphragm, PTFE valve/ball, PP valve seat, FEP//FKM O-ring, FNPT connection
FT05P-PP-2TPC-N1
$541.00
PP (wetted & non wetted), EPDM diaphragm/valve/ball, PP valve seat, Buna-N O-ring, FNPT connection
FT05P-PP-EEPB-N1
$466.00

Description

FTI Air Model FT05 plastic pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: Polypropylene, Conductive Polypropylene
  • Diaphragm Materials: Santoprene™, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene™, PTFE
  • Seat Materials: Polypropylene
  • O-ring Materials: Buna-N, Santoprene™, FEP/FKM
 Wetted Non-wetted Diaphragm Valve/Ball
#1 Polypropylene Polypropylene
Santoprene™ Santoprene™
#2 Polypropylene Polypropylene PTFE/ Santoprene™ PTFE
#3 Polypropylene Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 Polypropylene Santoprene™ FNPT FT05P-PP-RRPR-N1
#2 Polypropylene FEP/FKM FNPT FT05P-PP-2TPC-N1
#3 Polypropylene Buna-N FNPT FT05P-PP-EEPB-N1


* Santoprene™ is a registered tradename of Exxon Mobil Corporation
