Description

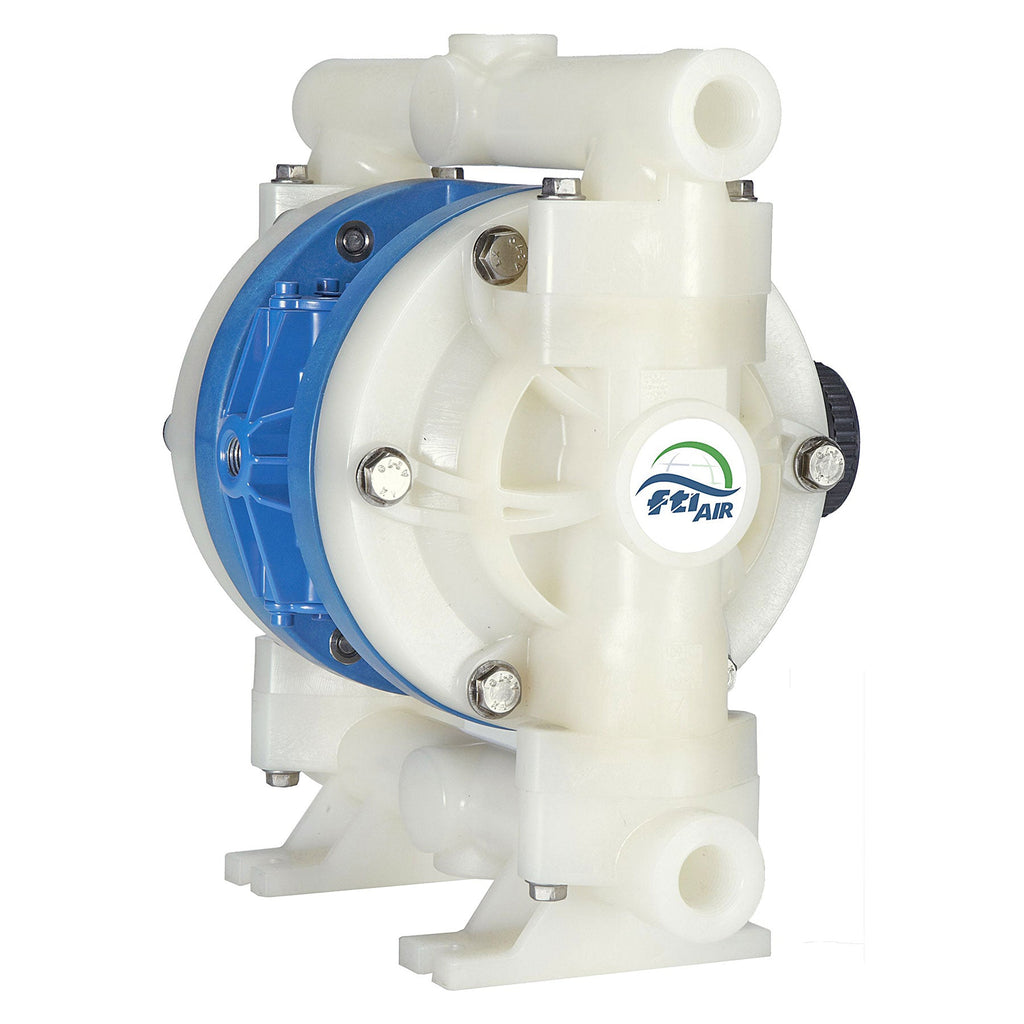

FTI Air Model FT05 plastic pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.
Construction:
- Wetted Materials: PVDF
- Diaphragm Materials: Santoprene, PTFE, EPDM
- Ball Materials: EPDM, Santoprene, PTFE
- Seat Materials: PVDF
- O-ring Materials: Buna-N, Santoprene, FEP/FKM
| Wetted | Non-wetted | Diaphragm | Valve/Ball | |
| #1 | PVDF |
Polypropylene |
Santoprene |
Santoprene |
| #2 | PVDF | Polypropylene | PTFE/Santoprene | PTFE |
| #3 | PVDF | Polypropylene | EPDM | EPDM |
| Valve Seat | O-Ring | Connection | Part No. | |
| #1 | PVDF |
Santoprene |
FNPT | FT05V-PP-RRVR-N1 |
| #2 | PVDF | FEP/FKM | FNPT | FT05V-PP-2TVC-N1 |
| #3 | PVDF | Buna-N | FNPT | FT05V-PP-EEVB-N1 |
* Santoprene is a registered tradename of Exxon Mobil Corporation
