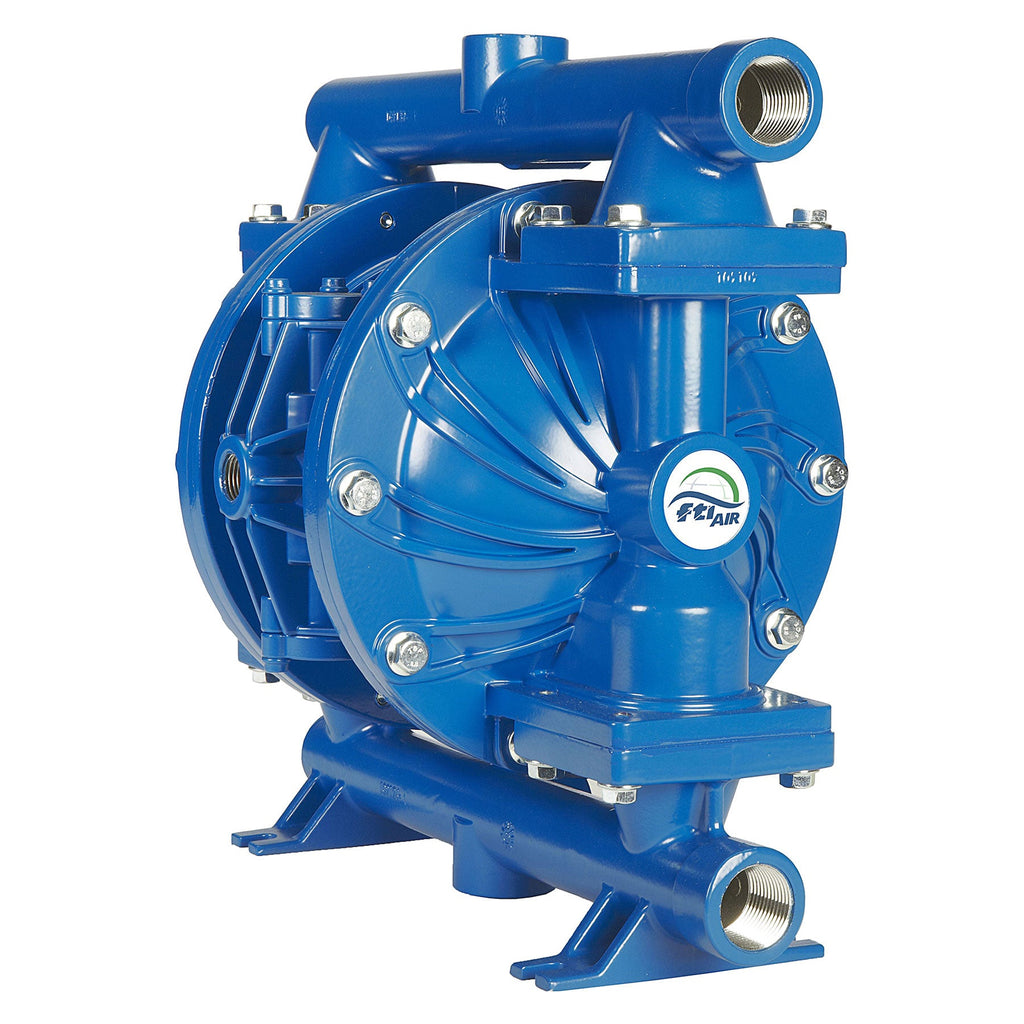

FTI Air Model FT10 Aluminum 1 in. Metallic Diaphragm Pump

FTI AirSKU: FT10A-AA-RRAT-N1
No reviews

View
Aluminum (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Aluminum valve seat, PTFE O-ring, FNPT connection
Price:
Sale price$706.00

Shipping calculated at checkout

Description
SKU
Price
Qty.
Aluminum (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Aluminum valve seat, PTFE O-ring, FNPT connection
FT10A-AA-RRAT-N1
$706.00
Aluminum (wetted & non-wetted), PTFE/Santoprene™ diaphragm, PTFE valve/ball, PTFE valve seat, FEP/FKM O-ring, FNPT connection
FT10A-AA-2TTC-N1
$868.00
Aluminum (wetted & non-wetted), EPDM diaphragm, EPDM valve/ball, Aluminum valve seat, EPDM O-ring, FNPT connection
FT10A-AA-EEAE-N1
$738.00

Description

FTI Air Model FT10 pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: Aluminum
  • Diaphragm Materials: Santoprene™, EPDM, PTFE
  • Ball Materials: EPDM, Santoprene™, PTFE
  • Seat Materials: Aluminum, PTFE
  • O-ring Materials: PTFE, FEP/FKM, EPDM

 Wetted Non-wetted Diaphragm Valve/Ball
#1 Aluminum
Aluminum
Santoprene™
Santoprene™
#2 Aluminum
Aluminum
PTFE/ Santoprene™ PTFE
#3 Aluminum
Aluminum
EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 Aluminum
PTFE FNPT FT10A-AA-RRAT-N1
#2 PTFE FEP/FKM FNPT FT10A-AA-2TTC-N1
#3 Aluminum
EPDM
FNPT FT10A-AA-EEAE-N1

* Santoprene™ is a registered tradename of Exxon Mobil Corporation
