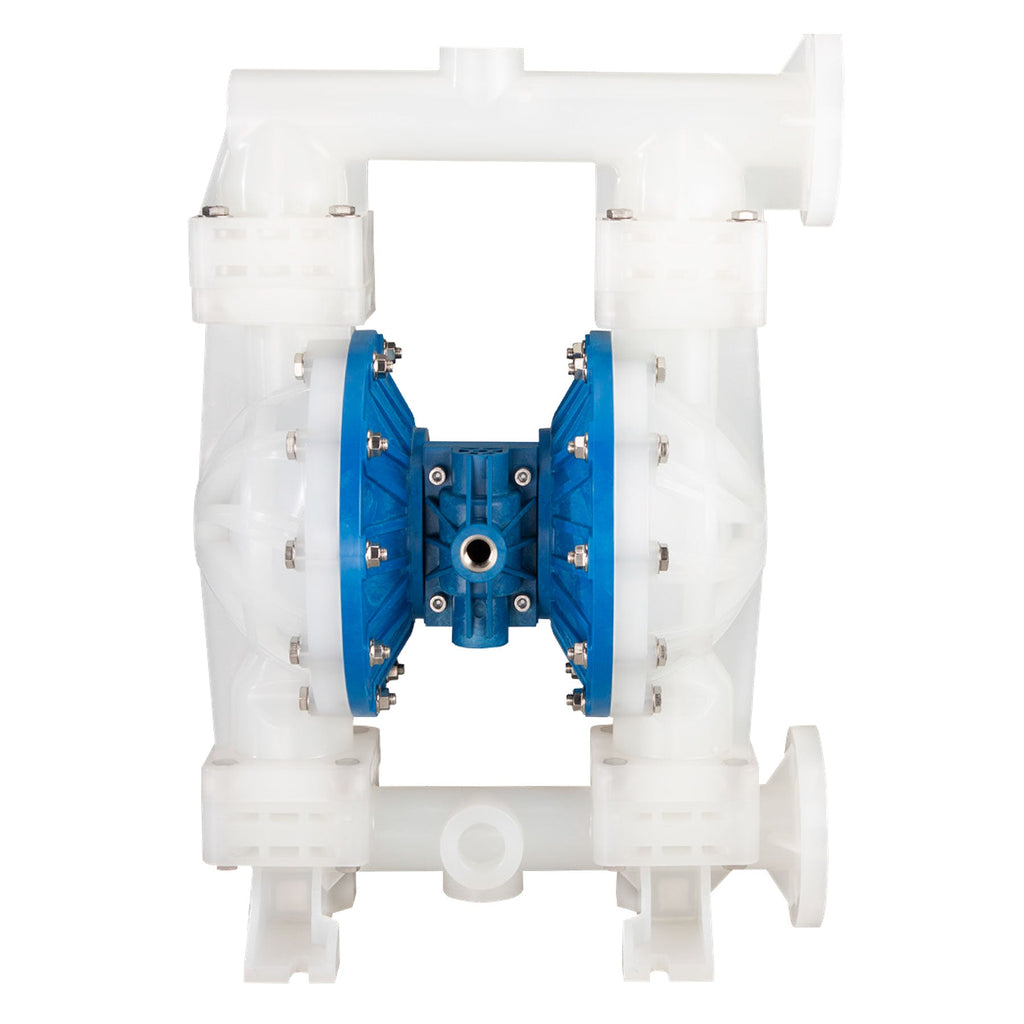

FTI Air Model FT15Z Polypropylene 1 1/2 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT15ZP-PP-RRPR-N1
No reviews

View
Polypropylene (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Polypropylene valve seat, Santoprene™ O-ring, FNPT connection
Price:
Sale price$1,808.00

Shipping calculated at checkout

Description
SKU
Price
Qty.
Polypropylene (wetted & non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Polypropylene valve seat, Santoprene™ O-ring, FNPT connection
FT15ZP-PP-RRPR-N1
$1,808.00
Polypropylene (wetted & non-wetted), PTFE/Santoprene™ diaphragm, PTFE valve/ball, Polypropylene valve seat, FEP/FKM O-ring, FNPT connection
FT15ZP-PP-2TPC-N1
$2,147.00
Polypropylene (wetted & non-wetted), EPDM diaphragm, EPDM valve/ball, Polypropylene valve seat, EPDM O-ring, FNPT connection
FT15ZP-PP-EEPE-N1
$1,807.00

Description

FTI Air Model FT15Z pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: Polypropylene
  • Diaphragm Materials: Santoprene™, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene™, PTFE
  • Seat Materials: Polypropylene
  • O-ring Materials: EPDM
 Wetted Non-wetted Diaphragm Valve/Ball
#1 Polypropylene Polypropylene
Santoprene™ Santoprene™
#2 Polypropylene Polypropylene PTFE/ Santoprene™ PTFE
#3 Polypropylene Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 Polypropylene Santoprene™ FNPT FT15ZP-PP-RRPR-N1
#2 Polypropylene FEP/FKM FNPT FT15ZP-PP-2TPC-N1
#3 Polypropylene EPDM
FNPT FT15ZP-PP-EEPE-N1


* Santoprene™ is a registered tradename of Exxon Mobil Corporation
