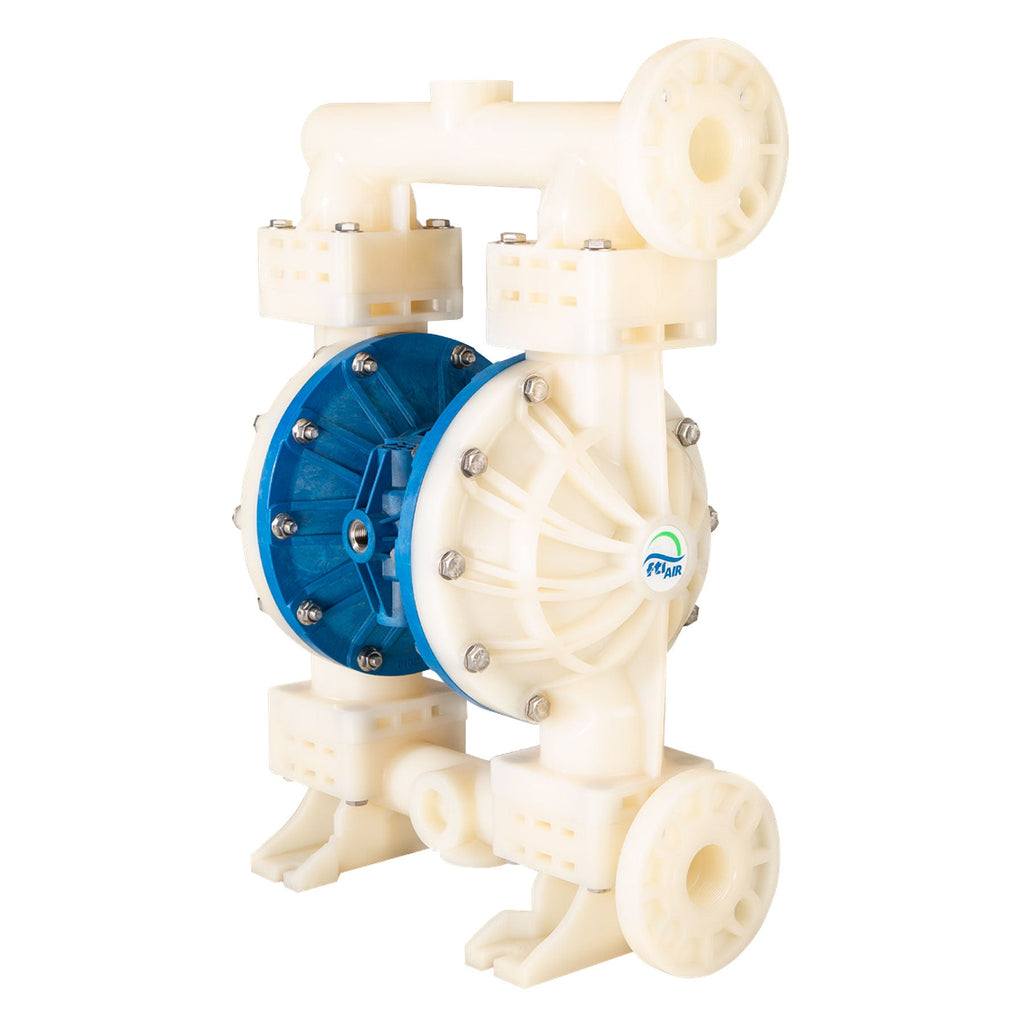

FTI Air Model FT15Z PVDF 1 1/2 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT15ZV-PP-RRVR-N1
No reviews

View
PVDF (wetted) Polypropylene (non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, PVDF valve seat, Santoprene™ O-ring, FNPT connection
Price:
Sale price$5,097.00

Shipping calculated at checkout

Description
SKU
Price
Qty.
PVDF (wetted) Polypropylene (non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, PVDF valve seat, Santoprene™ O-ring, FNPT connection
FT15ZV-PP-RRVR-N1
$5,097.00
PVDF (wetted) Polypropylene (non-wetted), PTFE/Santoprene™ diaphragm, PTFE valve/ball, PVDF valve seat, FEP/FKM O-ring, FNPT connection
FT15ZV-PP-2TVC-N1
$5,435.00
PVDF (wetted) Polypropylene (non-wetted), EPDM diaphragm, EPDM valve/ball, PVDF valve seat, EPDM O-ring, FNPT connection
FT15ZV-PP-EEVE-N1
$5,095.00

Description

FTI Air Model FT15Z pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: PVDF
  • Diaphragm Materials: Santoprene™, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene™, PTFE
  • Seat Materials: PVDF
  • O-ring Materials: EPDM, Santoprene™, FEP/FKM

 Wetted Non-wetted Diaphragm Valve/Ball
#1 PVDF Polypropylene
Santoprene™
Santoprene™
#2 PVDF Polypropylene PTFE/ Santoprene™ PTFE
#3 PVDF Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 PVDF Santoprene™
FNPT FT15ZV-PP-RRVR-N1
#2 PVDF FEP/FKM FNPT FT15ZV-PP-2TVC-N1
#3 PVDF EPDM
FNPT FT15ZV-PP-EEVE-N1


* Santoprene™ is a registered tradename of Exxon Mobil Corporation
