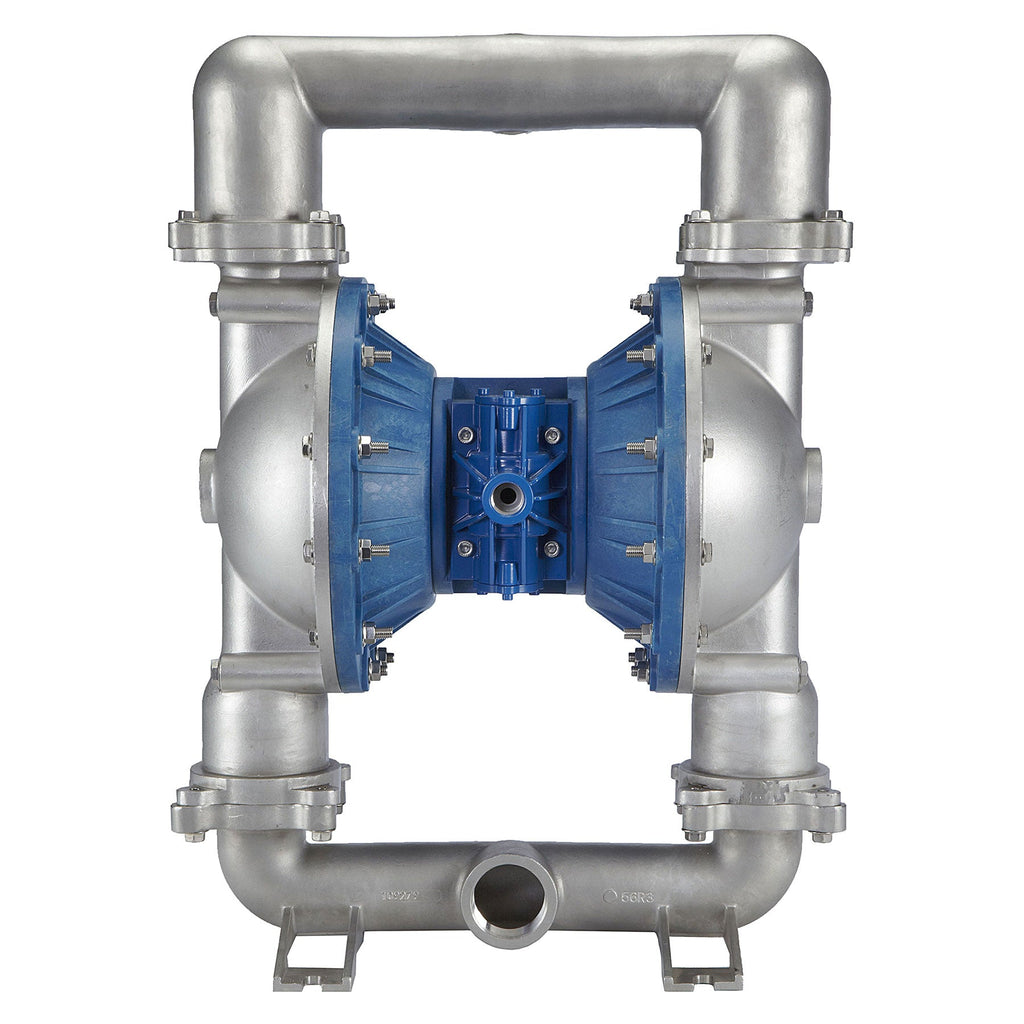

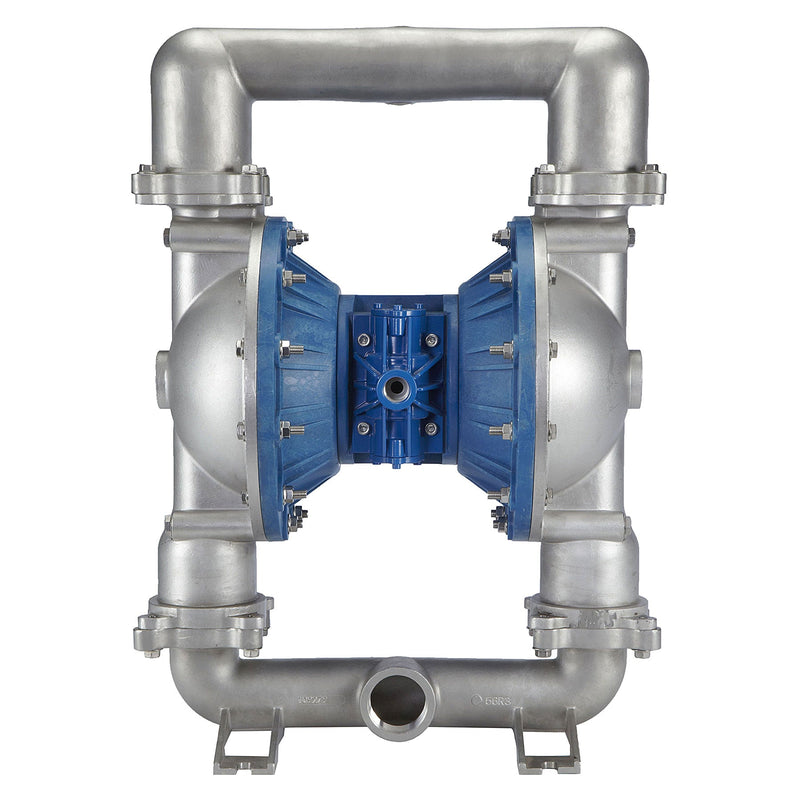

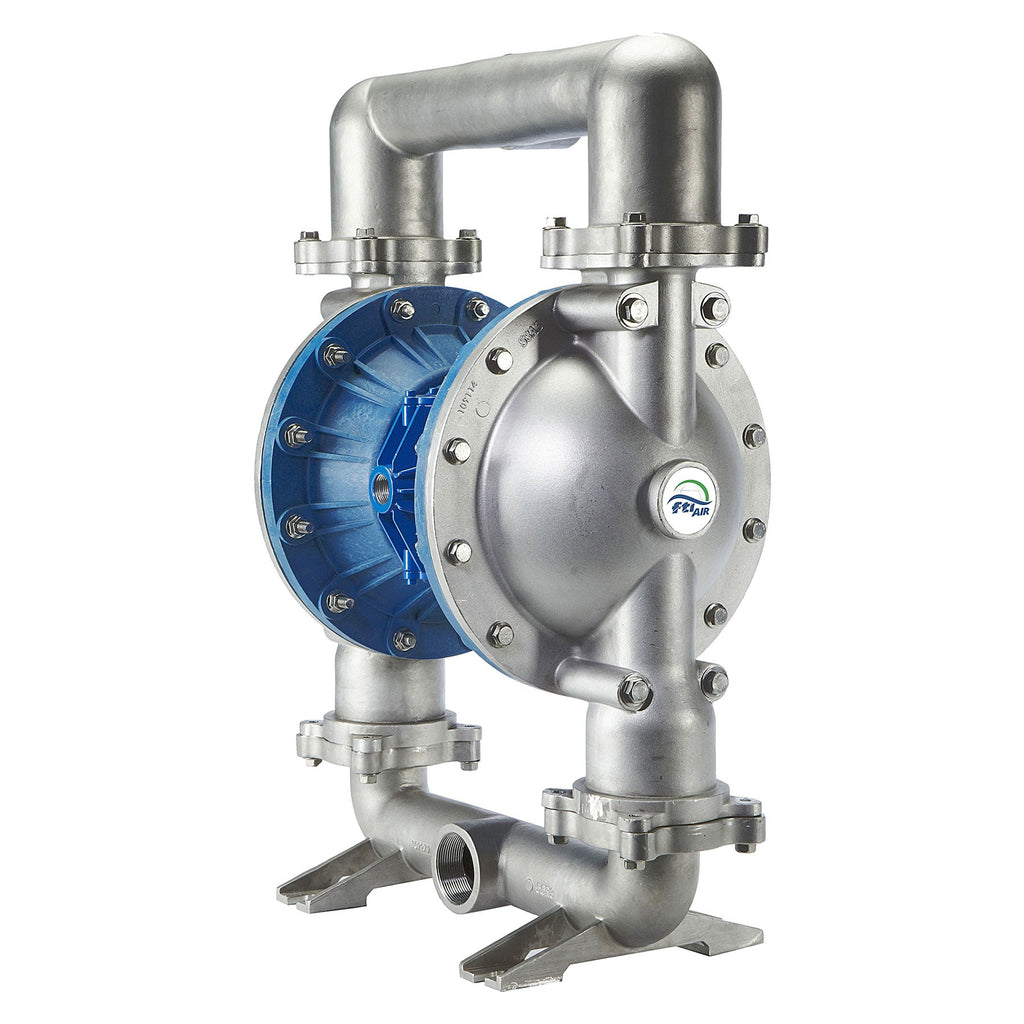

FTI Air Model FT20 316 Stainless Steel 2 in. Metallic Diaphragm Pump

FTI AirSKU: FT20S-AA-RRST-N2
No reviews

View
Stainless Steel (wetted) Aluminum (non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Stainless Steel valve seat, PTFE O-ring, FNPT connection
Price:
Sale price$3,987.00

Shipping calculated at checkout

Description
SKU
Price
Qty.
Stainless Steel (wetted) Aluminum (non-wetted), Santoprene™ diaphragm, Santoprene™ valve/ball, Stainless Steel valve seat, PTFE O-ring, FNPT connection
FT20S-AA-RRST-N2
$3,987.00
Stainless Steel (wetted) Aluminum (non-wetted), PFTE/Santoprene™ diaphragm, PFTE valve/ball, PFTE valve seat, FEP/FKM O-ring, FNPT connection
FT20S-AA-2TTC-N2
$4,228.00
Stainless Steel (wetted) Aluminum (non-wetted), EPDM diaphragm, EPDM valve/ball, Stainless Steel valve seat, EPDM O-ring, FNPT connection
FT20S-AA-EESE-N2
$3,969.00

Description

FTI Air Model FT20 pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure..

Construction:

  • Wetted Materials: Stainless Steel
  • Diaphragm Materials: Santoprene™, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene™, PTFE
  • Seat Materials: Stainless Steel, PTFE
  • O-ring Materials: PTFE, FEP/FKM, EPDM

 Wetted Non-wetted Diaphragm Valve/Ball
#1 Stainless Steel
Aluminum
Santoprene™
Santoprene™
#2 Stainless Steel
Aluminum
PTFE/ Santoprene™ PTFE
#3 Stainless Steel
Aluminum
EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 Stainless Steel PTFE FNPT FT20S-AA-RRST-N2
#2 PTFE FEP/FKM FNPT FT20S-AA-2TTC-N2
#3 Stainless Steel EPDM
FNPT FT20S-AA-EESE-N2

* Santoprene™ is a registered tradename of Exxon Mobil Corporation
