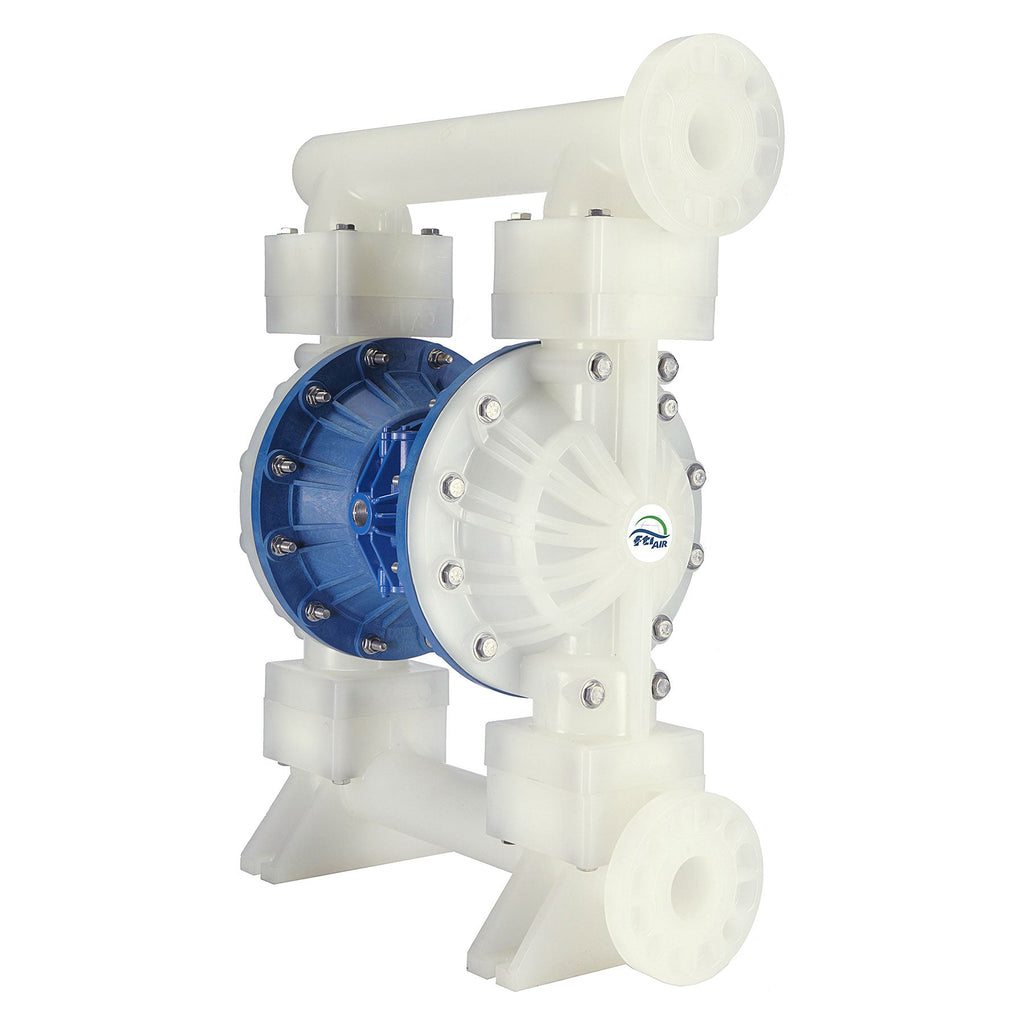

Model FT20 PVDF 2 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT20V-PP-RRVR-F1

Grid List
2 in. FT20 PVDF Non-Metallic Diaphragm Pump Santoprene
Diaphragm:
Price:
Sale price$6,696.82

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
2 in. FT20 PVDF Non-Metallic Diaphragm Pump Santoprene
FT20V-PP-RRVR-F1
$6,696.82
2 in. FT20 PVDF Non-Metallic Diaphragm Pump PTFE/Santoprene
FT20V-PP-2TVC-F1
$7,060.60
2 in. FT20 PVDF Non-Metallic Diaphragm Pump EPDM
FT20V-PP-EEVB-F1
$6,694.24

Product has been added to your cart

Please input the Quantity!

Description

FTI Air Model FT20 pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: PVDF
  • Diaphragm Materials: Santoprene, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene, PTFE
  • Seat Materials: PVDF
  • O-ring Materials: Buna-N, Santoprene, FEP/FKM

Wetted Non-wetted Diaphragm Valve/Ball
#1 PVDF Polypropylene
Santoprene
Santoprene
#2 PVDF Polypropylene PTFE/Santoprene PTFE
#3 PVDF Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 PVDF Santoprene
ANSI/DIN/IS degrees Flange FT20V-PP-RRVR-F1
#2 PVDF FEP/FKM ANSI/DIN/IS degrees Flange FT20V-PP-2TVC-F1
#3 PVDF Buna-N
ANSI/DIN/IS degrees Flange FT20V-PP-EEVB-F1


* Santoprene is a registered tradename of Exxon Mobil Corporation
