Standard Acids & Alkalis Measurement Pump Package
Roll over image to zoom in Click on image to zoom
Standard Acids & Alkalis Measurement Pump Package

Acids & Alkalis Measurement Pump Package #4

StandardSKU: 9500
Grid List
39 in. PP Pump Tube - SP-280P Variable Speed 110V Motor
Style:
Price:
$3,526.27

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
39 in. PP Pump Tube - SP-280P Variable Speed 110V Motor
9500
$3,526.27
39 in. PP Pump Tube - SP-280P Variable Speed 220V Motor
9501
$3,567.40
47 in. PP Pump Tube - SP-280P Variable Speed 110V Motor
9502
$3,532.00
47 in. PP Pump Tube - SP-280P Variable Speed 220V Motor
9503
$3,934.76

Product has been added to your cart

Please input the Quantity!

Description

Standard Pump Package 4
POLYPROPYLENE – METER
Engineered to safely measure and dispense corrosive chemicals. Not suitable for pumping flammable or combustible liquids.

Applications

  • Hydrochloric Acid
  • Acetic Acid
  • Sulfuric Acid
  • Nitric Acid (20 Percent)

Technical Specifications

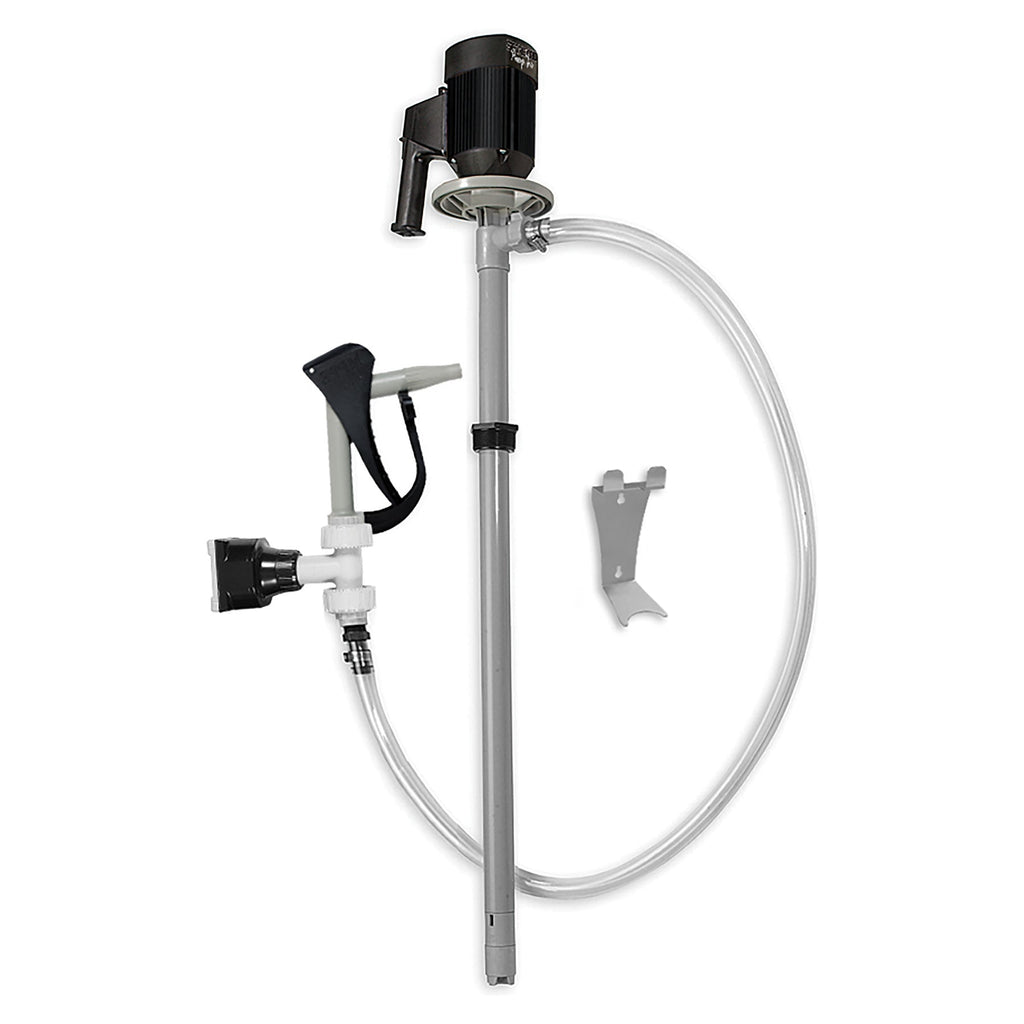

  • Package Includes: Motor, Pump Tube, Hose, Storage Bracket, Flow Meter, Barrel Adapter and Hand Nozzle
  • Motor Type: Open Drip Proof (IP44)
  • Pump Tube Material: Polypropylene, Hastelloy C-276, Carbon Graphite
  • Immersion Length: 39 in. (1000 mm) or 47 in. (1200 mm)
  • Discharge Hose: PVC, 6 ft (1,8 m), 1 in. (25 mm) I.D.
  • Hand Nozzle Material: Polypropylene, Viton
  • Flow Meter Material: Polypropylene, PVDF, Viton, Halar, Ceramic
  • Flow Meter Type: Digital / Battery Powered Totalizer
  • Maximum Flow Rate: 13.5 GPM (51 LPM) based on water
  • Maximum Viscosity: 300 cps (mPas)
  • Maximum Temperature: 130 degrees F (55 degrees C)
  • Shipping Weight: 23 lbs. (10,43 kg)
