Description

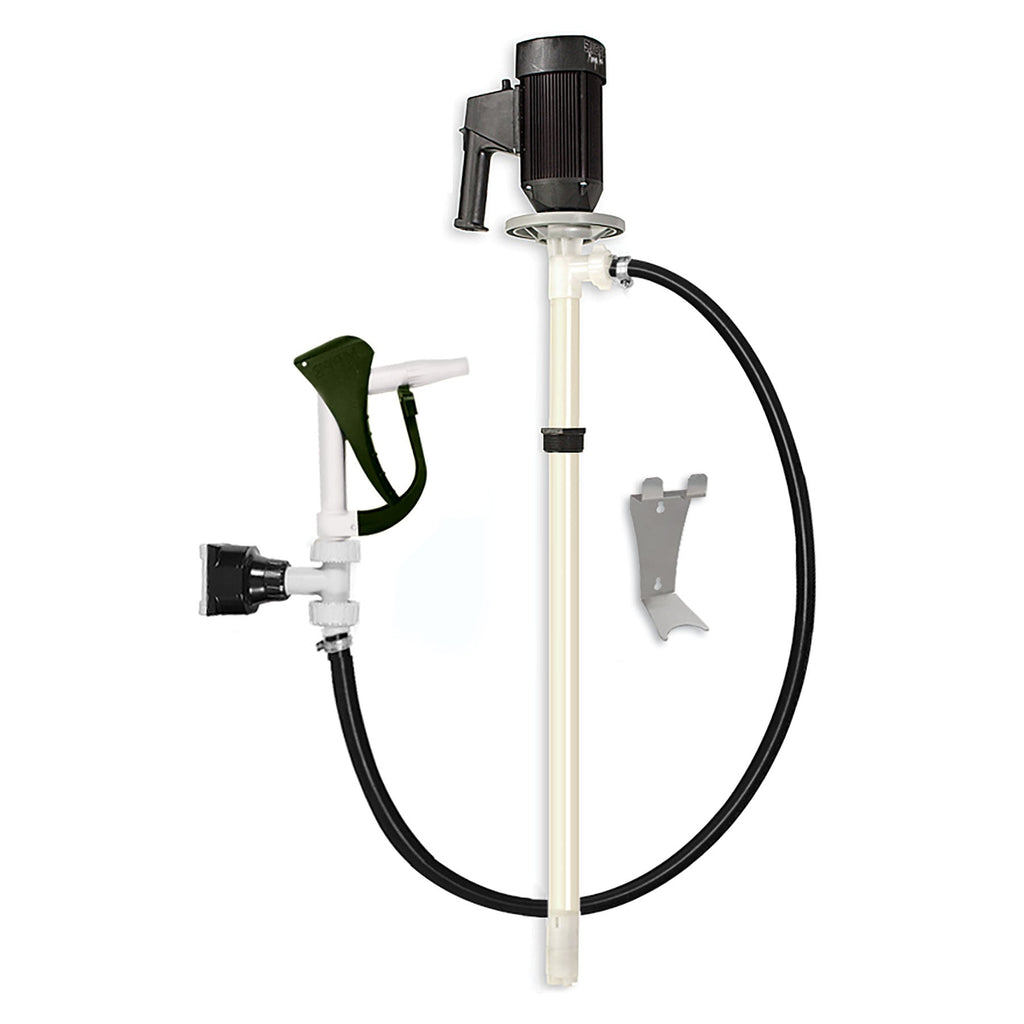

STANDARD's Pump Package 5's unique design allows operators to safely measure and transfer concentrated and very aggressive liquids. Common applications include: Sulfuric Acid 66 Baumé, Propionic Acid, Concentrated Nitric (98%) and Hydrofluoric Acid.
Applications
- Sulfuric Acid 66 baume
- Concentrated Nitric (98%)
- Propionic Acid
- Hydrofluoric Acid
Technical Data
| Package: | Motor, Pump, Hose, Storage Bracket Flow Meter, Barrel Adapter & Hand Nozzle |
| Motor Type: | TEFC (IP 54), SP-ENC-V or SP-ENC-2-V |
| Pump Assembly: | PVDF |
| Pump Length: | 39" (1000 mm) or 47" (1200 mm) |
| Discharge Hose: | Goodyear® Viper 16™ , 6 ft (1,8 m), 1" (25 mm) I.D. |
| Hand Nozzle: | 1" (25 mm) PVDF |
| Barrel Adapter: | Polypropylene |
| Storage Bracket: | Steel |
| Flow Meter: | Digital / PVDF totalizer |
| Max. Flow Rate: | 16 GPM (61 LPM) based on water |
| Max. Viscosity: | 300 cps (mPas) |
| Max. Temperature: | 175° F (55° C) |
| Shipping Weight: |
Model Numbers
|
Model
|
Voltage
|
Immersion
Length |
|
9510
|
110-120V
|
39" (1000 mm)
|
|
9511
|
220-240V
|
39" (1000 mm)
|
|
9512
|
110-120V
|
47" (1200 mm)
|
|
9513
|
220-240V
|
47" (1200 mm)
|
Dimensions
