Description
Applications
- Light Machining Oils
- Anti-Freeze
- Hydraulic Fluid
- Lubricating Oil
- Motor Oil (up to 30 wt.)
Technical Data

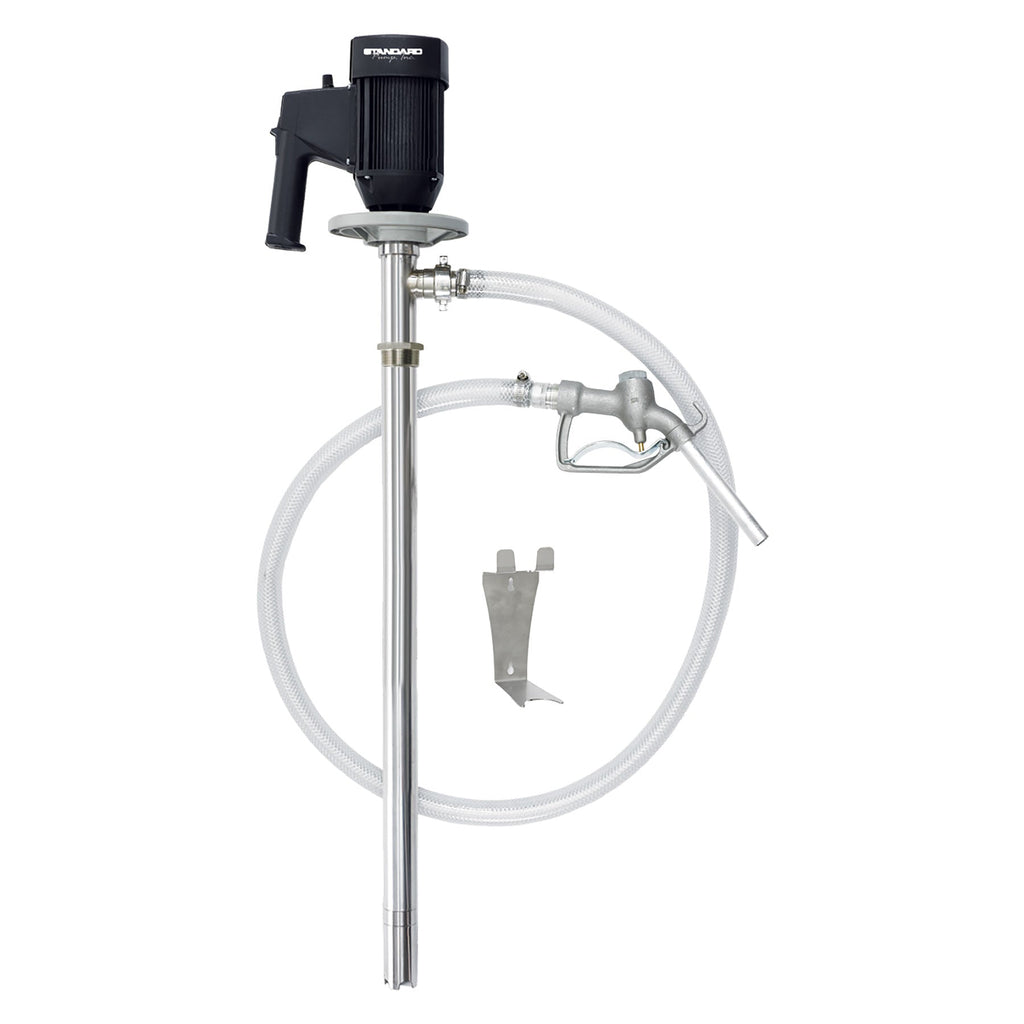

Package: | Motor, Pump, Hose, Storage Bracket Barrel Adapter & Hand Nozzle |
Motor Type: | Open Drip Proof (IP 44), SP-280P-V or SP-280P-2-V |
Pump Assembly: | Aluminum |
Pump Length: | 39" (1000 mm) or 47" (1200 mm) |
Discharge Hose: | 6 ft. (1,8 m), I.D. 1" (25 mm) PVC |
Hand Nozzle: | 1" (25 mm) Aluminum |
Barrel Adapter: | Stainless Steal |
Storage Bracket: | Steel |
Max. Flow Rate: | 22 GPM (83 LPM) based on water |
Max. Viscosity: | 1500 cps (mPas) |
Max. Temperature: | 175° F (80° C) |
Shipping Weight: | 23 lbs. (10,43 kg) |
Model Numbers
Model |
Voltage |
Immersion Length |
||||||||||||
9460 110-120V 39" (1000 mm) 9461 220-240V 39" (1000 mm) 9462 110-120V 47" (1200 mm) 9463 220-240V 47" (1200 mm) |
Dimensions

Downloads
